Evolving for the Future

Using special modular system, all core components of the M30 Pro can be easily exchanged or upgraded. Over time simply adding new technologies or customizing M30 Pro for special use cases.

  • Digital Player Module: 5.8' 1080x2160 Touch screen & Qualcomm 665 CPU
  • DAC Module: AKM AK4497 X 2 & Ti OPA2211 x 2
  • Tube Module: KORG 6P1 X 2
  • Spare module: For possible future upgrades
  • Amplifier Module: Discrete Audio Architecture
  • Battery Power Module: 16 500 mAh - 5x 18650 battery

All your music in one place

M30 Pro is running a closed Android 10 system, deeply customized for optimal sound quality and smooth operation. It comes ready with wide support for playback of local files and a range of music streaming services. M30 Pro version features the powerful Octa-Core Snapdragon 665 CPU, powering the system.

Available streaming services: Spotify / Tidal Qobuz / Deezer Apple Music Amazon Music

The highest levels of Hi-Fi

Sound of M30 Pro is based on more than 35 years of Shanling's experience in designing High-end audio, achieving the highest sound quality, while keeping a calm and balanced presentation. DAC module is designed with our final supply of AKM AKK4497 DACs, running in a fully balanced mode and combining DACS with Ti OPA2211 amplifiers and a range of top-quality parts.

Amplifier Module Upgraded Power

Featuring an upgraded high-power amplifier module, a discrete audio architecture offering up to 3.8W @ 32 0 Output power. Designed with a clear focus on the most demanding full-size headphones on the market, further adjusted over many months of testing with the most high-end models of headphones.

Clean Stable Power

By opting for a fully battery-powered design, M30 Pro runs on the cleanest and most stable power in all conditions. Providing the best sound quality without any need for additional power conditioning.

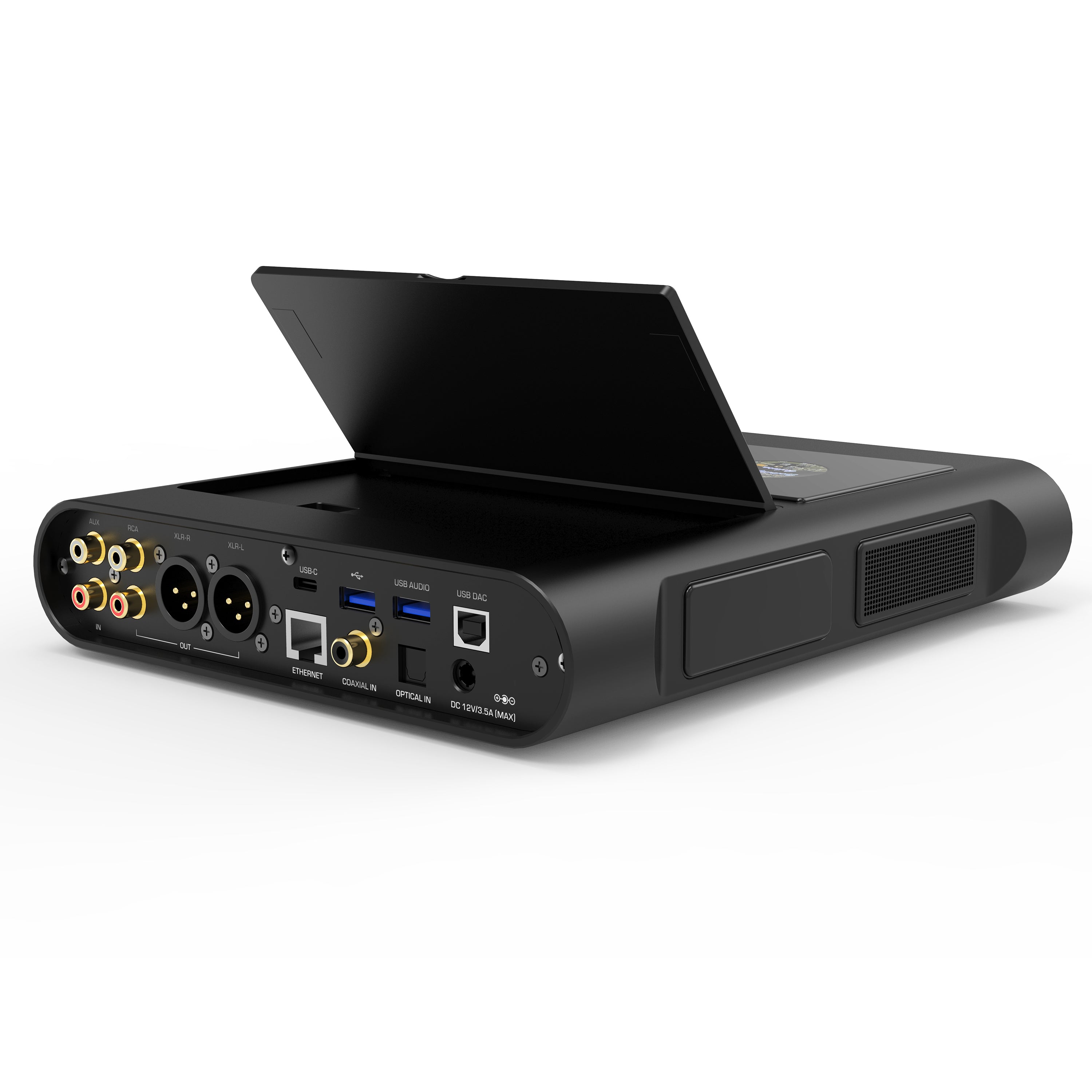

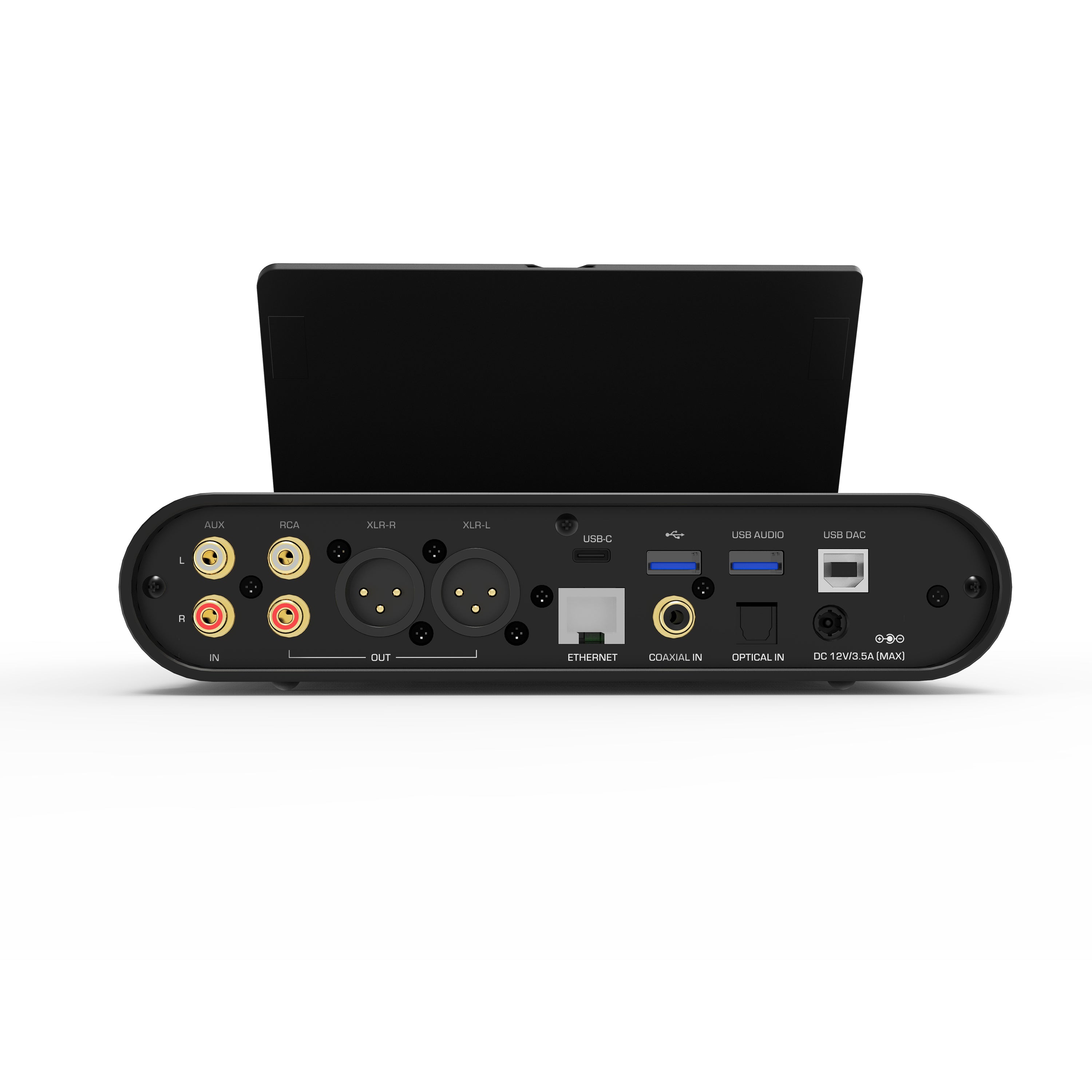

Ready for All Connections

M30 Pro can easily fit into any current home audio chain, just pick one of the six different headphone connectors, a range of digital inputs and analog inputs or outputs.

XLR Balanced, 4.4mm Balanced, 3.5Pro Balanced, 2.5mm Balanced, 3.5mm Single-ended, 6.35mm Single-ended

RCA input, USB-C for data transfer, USB slot for external drives, USB Audio output, USB DAC Input RCA output, XLR output, Ethernet port, Coaxial digital input, Optical digital input, Charging port.

Every Detail Matters

As a high-end Audio manufacturer, we know that even the smallest details can have impact on the overall performance.

Aluminium chassis Carefully crafted by CNC machines from a single piece of aluminium, for the best stability and interference resistance.

Hi-End Grade wires Using only the finest monocrystalline copper for internal wiring, for the smoothest signal transmission.

Tantalum-Polymer Capacitors Designed with 92 of the highly accurate and temperature stable Panasonic capacitors.

KDS Crystal Oscillators Pair of extremely precise oscillators for reduced jitter and accurate clocking.

山灵M30 Pro
山灵M30 Pro 促销价格$5,411.93 SGD 原价$6,944.04 SGD
Features

Discrete Amplifier Architecture

High-Performance Triode

Powerful 3.8W@32 ohms Output

Dual AKM AK4497 DACs

Sanyo Solid Capacitors

Korg Tube Module

Snapdragon 665CPU

Customized Android 10 System

Fully Independent Battery Power

Streaming Services

Remote Control via App

Specifications

Dimensions: 213 * 258 * 50 mm

Weight: 3kg

System Module

Screen: 5.8-inch 2160*1080 HD Sharp Display

System: Closed customized Android 10 system

Audio format support: DS / DFF /ISO/ DXD /APE / FLAC/ WAV/ AIFF / AIF / DTS/ MP3/WMA/ACC/OGG/ ALAC/ MP2/ M4A/AC3/ M3U/ M3U8

Hi-Res Support: 32bit / 768kHz& DSD512

Storage: MicroSD Card up to 2TB

Bluetooth version: 5.0

Transmit: LDAC/LHDC/aptXHD/aptX/ SBC

Receive: LDAC / SBC

DAC Module

DAC: 2X AKM AK4497EQ

Digital Filter: 6 Built-in Options

Tube Module

Model: KORG 6P1X2

Battery Module

Battery: Panasonic 18650X5

Total capacity: 16500mAh

Battery Life: ~ 17.5 hours

RCA Output

Output Level:

  • Bypass mode: 2.6V
  • Transistor mode: 2.18V
  • Tube mode: 2.0V

Frequency Response: 20Hz-50kHz

THD+N:

  • Bypass mode: 0.0005%@320
  • Transistor mode: 0.0018%@320
  • Tube mode: 0.6%@320

Signal-to-noise ratio:

  • Bypass mode: 121dB@320
  • Transistor mode: 116dB@320
  • Tube mode: 99dB@320
XLR Output

Output Level:

  • Bypass mode: 5.2V
  • Transistor mode: 4.3V
  • Tube mode: 4.15V

Frequency Response: 20Hz-50kHz

THD+N:

  • Bypass mode: 0.0003%@320
  • Transistor mode: 0.0004%@320
  • Tube mode: 0.6%@320

Signal-to-noise ratio:

  • Bypass mode: 124dB@320
  • Transistor mode: 119dB@320
  • Tube mode: 102dB@320
Single-ended Headphone Outputs

Output Power:

  • Low Gain: 0.78V@320 (19mW@320)
  • Medium Gain: 1.5V@320 (70mW@320)
  • High Gain: 3V@320 (281mW@320)
  • Ultra-High Gain: 6V@320 (1125mW@320)
  • Ultra-High Gain: 7V@3002 (163mW@3000)

Frequency Response: 20Hz-50kHz (-0.5dB)

THD+N.

  • 0.0032%@320 (A-Weight@0.5V high gain)

Dynamic Range: 121dB@320 (A-Weight high gain)

Channel Separation: 72dB@320

Signal-to-Noise Ratio: 121dB@320 (A-Weight High Gain)

Output Impedance: < 0.80

Balanced Headphone Outputs
  • Low Gain: 1.6V@322 (80mW@320)
  • Medium Gain: 3.2V@320 (320mW@320)
  • High gain: 5.6V@320 (980mW@32)
  • Ultra-High Gain: 11V@320 (3800mW@32)
  • Ultra-High Gain: 13V@300 (565mW@3000)

Frequency Response: 20Hz-50kHz (-0.5dB)

THD+N.

  • 0.0007%@320 (A-Weight@1Vhigh gain)

Dynamic Range: 125B@320 (A-Weight@ 1V High Gain)

Channel Separation: 105B@320

Signal-to-Noise Ratio: 123dB@320 (A-Weight High Gain)

Output Impedance: < 1.60

What You Are Getting
  • M30 Pro
  • Metal Carrying Case
  • Screwdriver with set of bolts
  • Module removal tool
  • Suction cup
  • Gloves
  • USB-A to USB-C data cable
  • Cleaning cloth
  • Stand
  • Power Adapter
  • Manuals
