Bifrost 2/64 is a complete re-thinking of what an accessible DAC can be. With full hardware-balanced topology, balanced and single-ended outputs, remote control, Schiit’s unique True Multibit™ architecture with a time-and frequency-domain optimized digital filter, NOS mode, and our own Unison USB™ input and easy-to-upgrade Autonomy™ platform, Bifrost sets all the standards.

Top-Of-Class Hardware Balanced Design

Just like our range-topping Yggdrasil, the Bifrost 2/64 features a fully hardware balanced architecture. This means four 16-bit DACs total, with one DAC for each phase. You can expect the same stellar performance from both the XLR and RCA outputs, so Bifrost 2/64 works seamlessly with your system.

Featuring Schiit's Unique True Multibit™ — and NOS

Like all Schiit True Multibit products, Bifrost 2/64 uses completely unique D/A converters and our proprietary time- and frequency-domain optimized digital filter. In the case of Bifrost 2/64, four DAC8812 D/A converters—the same basic chip used in Yggdrasil Less is More—do the conversion, while the digital filter is implemented on an Analog Devices SHARC DSP. You can also choose non-oversampling mode (NOS) to bypass the digital filter entirely.

Unison USB™ is USB, Elevated

Bifrost 2/64 features Unison USB, our own USB input based on a general-purpose PIC32 microprocessor, using precision local clocks and complete electromagnetic and electrostatic isolation. No more off-the-shelf USB—this unique, UAC2-compliant input provides the highest performance and lowest power draw of any USB input we’ve offered to date.

Easy Upgrades with Autonomy™ Architecture

Slide-in hardware modules and a MicroSD card slot means this DAC never has to come back to Schiit for upgrades. Compare this to other DACs, even DACs costing many times more—only Bifrost 2/64 provides complete hardware and firmware upgradability. All original Bifrost 2s can be upgraded to 2/64 with a new card and firmware, available on our Upgrades page.

Schiit Audio Bifrost
Schiit Audio Bifrost 促销价格$1,479.00 SGD

Balanced or SE Output:

  • Frequency Response: 20Hz-20KHz, +/-0.02dB
  • THD+N: <0.0008%
  • IMD: <0.0006%, CCIF
  • S/N: > 124dB, referenced to full output
  • Crosstalk: -132dB, 20-20kHz

Maximum Output: 2.0V RMS single-ended, 4.0V RMS balanced

Inputs: Coaxial SPDIF, Optical SPDIF, USB

Input Capability: up to 24/192 for all inputs

Input Receiver

  • SPDIF: AK4113
  • USB: Schiit Unison™ USB

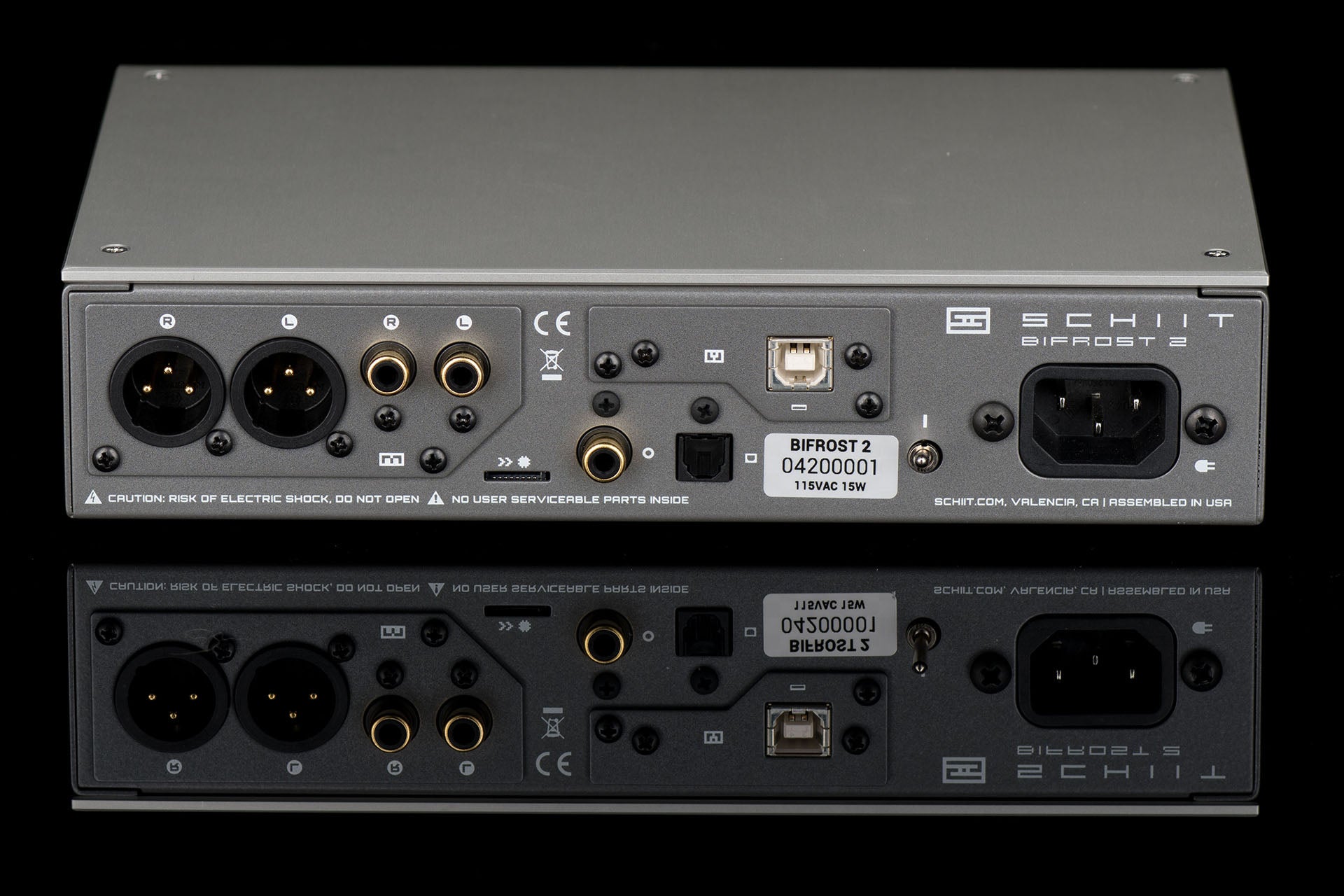

Outputs: RCA (single-ended) and XLR (balanced)

Output Impedance: 75 ohms for both

Conversion Type: Schiit True Multibit™

D/A Conversion IC: Texas Instruments DAC8812 x 4

Digital Filter: proprietary Schiit time- and frequency-domain optimized digital filter implemented on Analog Devices SHARC DSP processor, running 8X oversampling

Analog Stage: Differential, based on LME49724 or OPA1632 and OPA1656

Power supply: 24VA transformer, 8 stages of regulation, including discrete regulation for the analog card and separate supplies for critical digital and analog sections

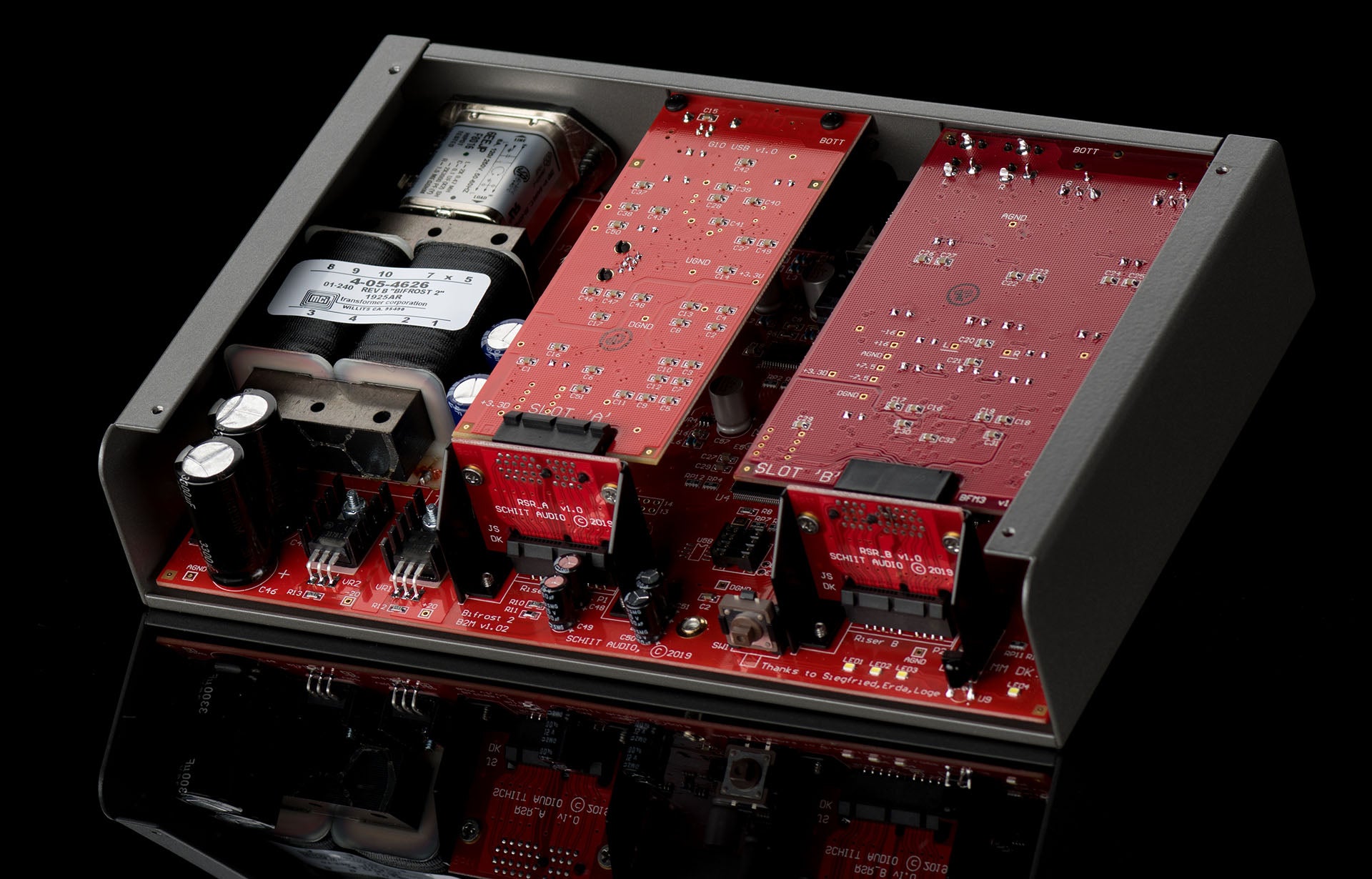

Upgradability: Autonomy™ architecture with externally replaceable DAC/Analog Card and USB Input Card, plus MicroSD card slot for firmware updates

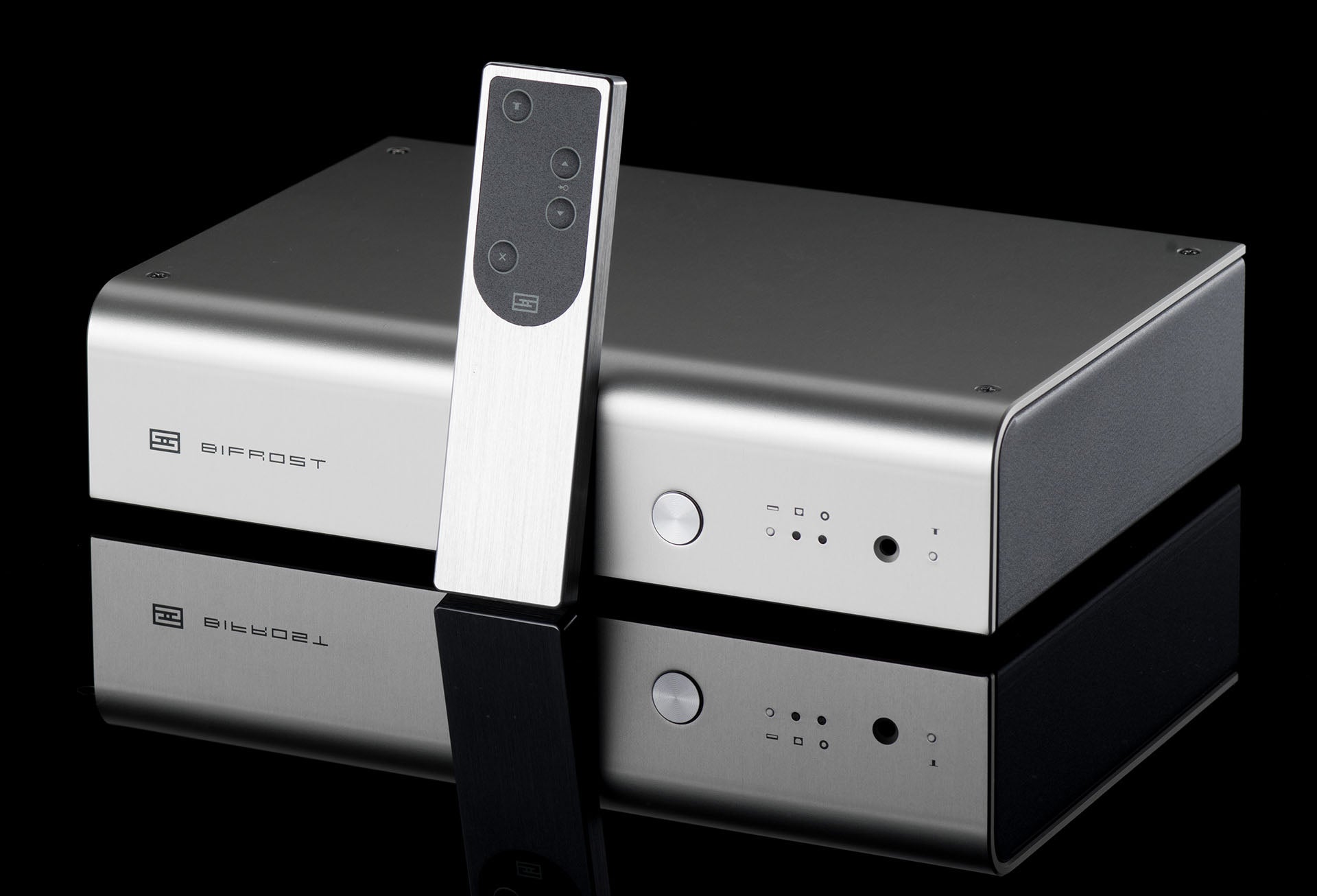

Remote control: included, controls source selection, phase invert, and mute.

Power Consumption: 12W

Size: 9 x 6.75 x 2”

Weight: 5 lbs

APx555 Report for Bifrost 2/64
