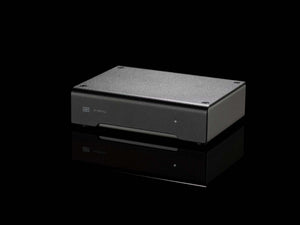

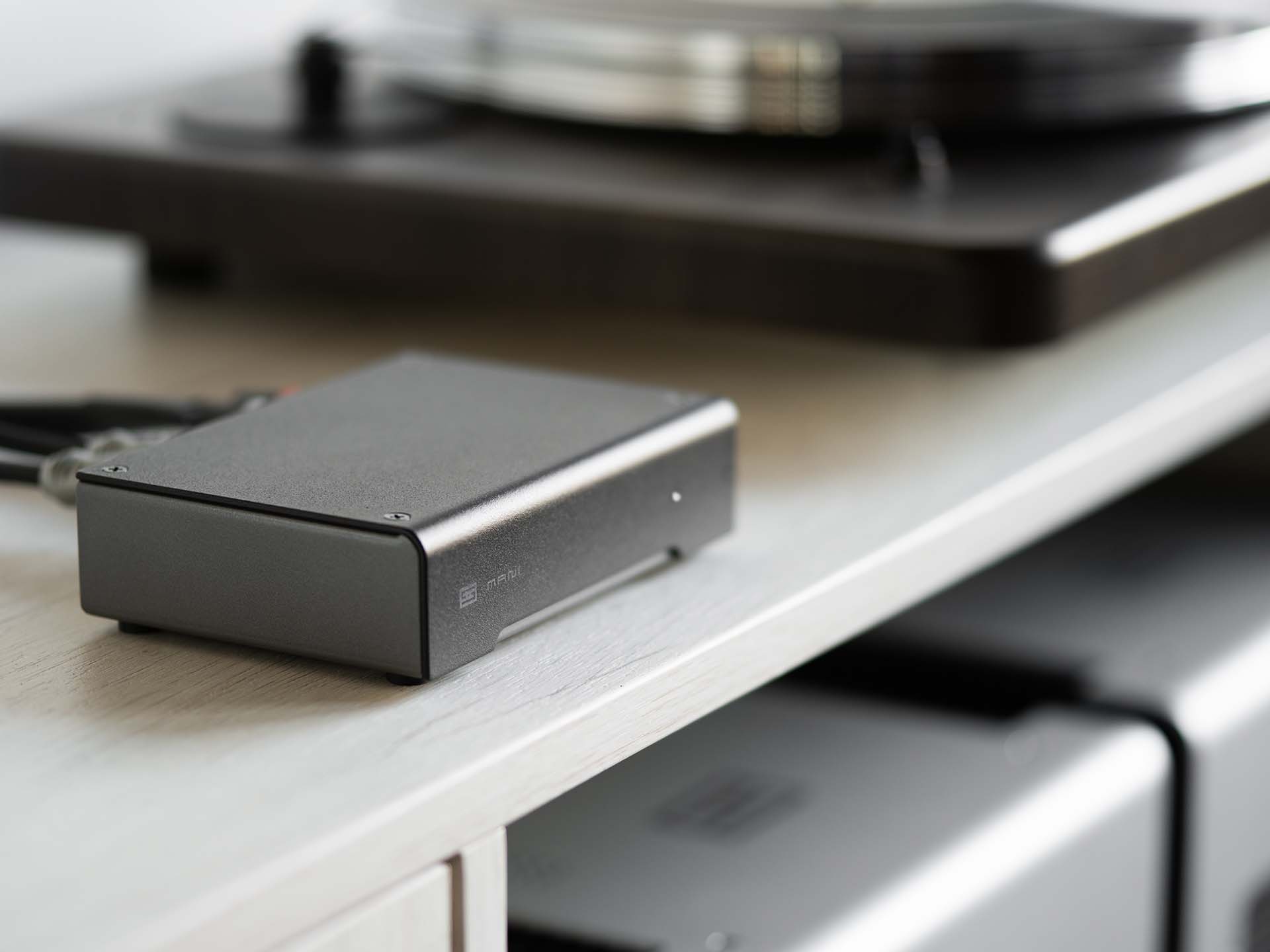

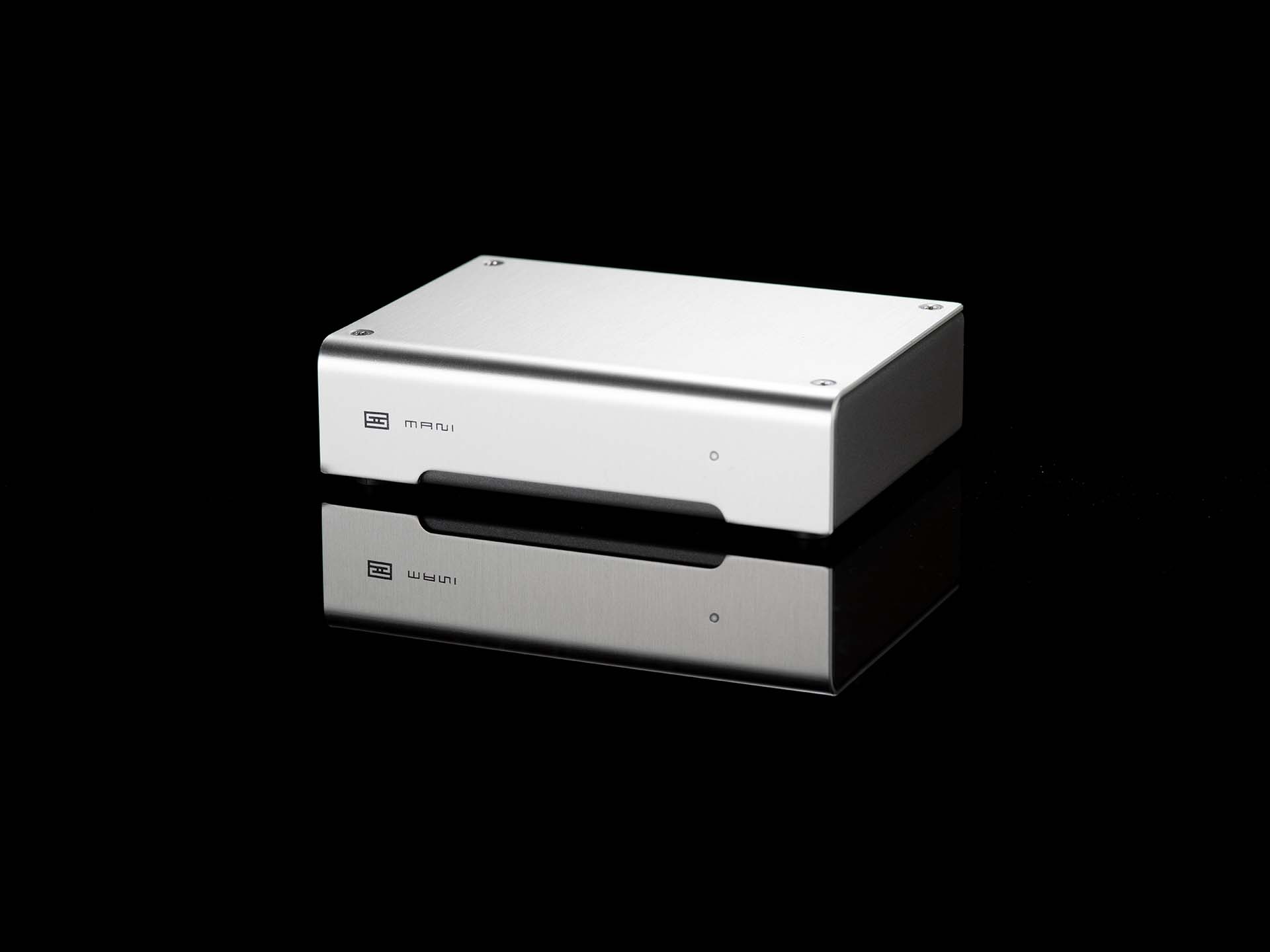

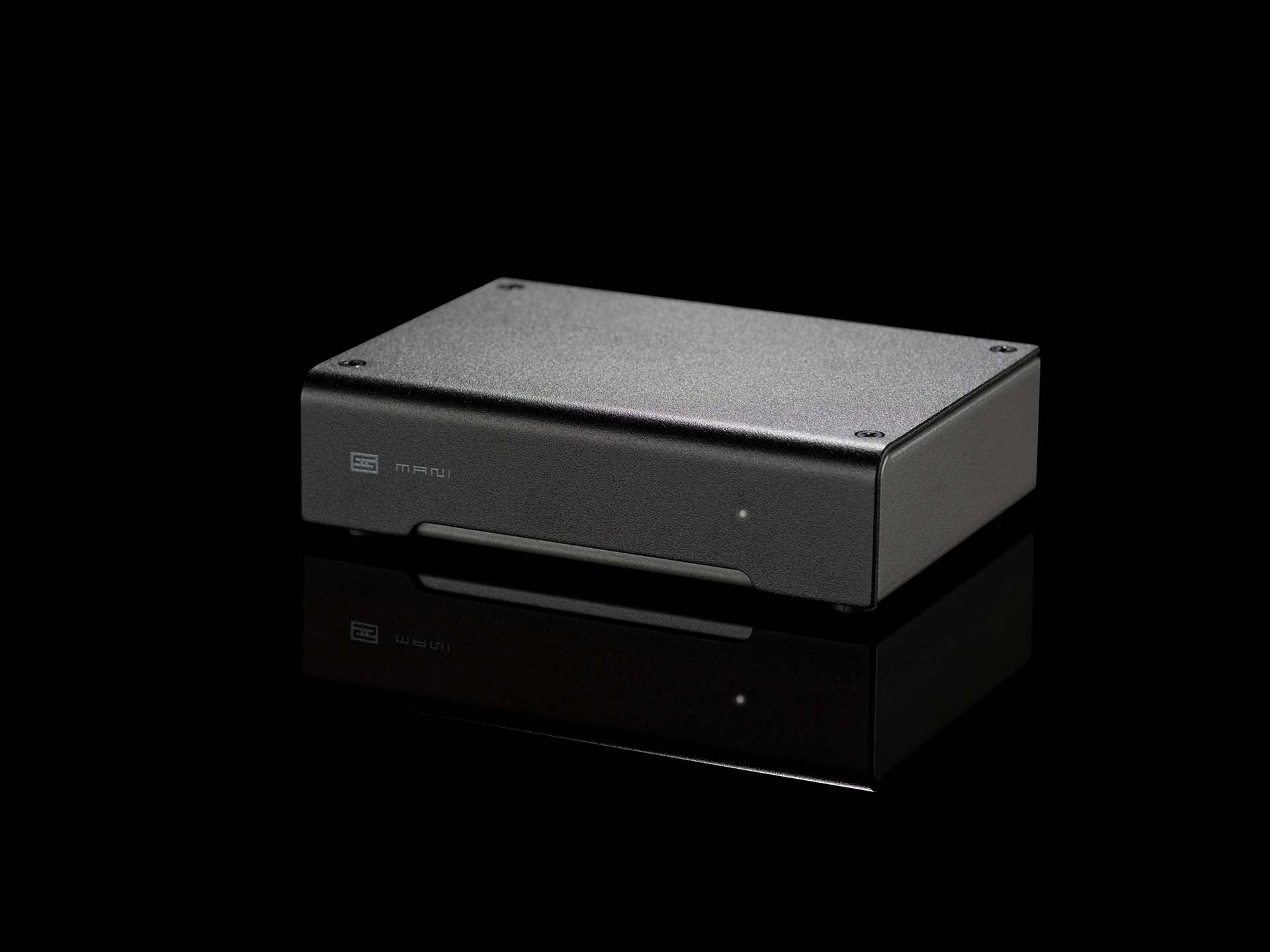

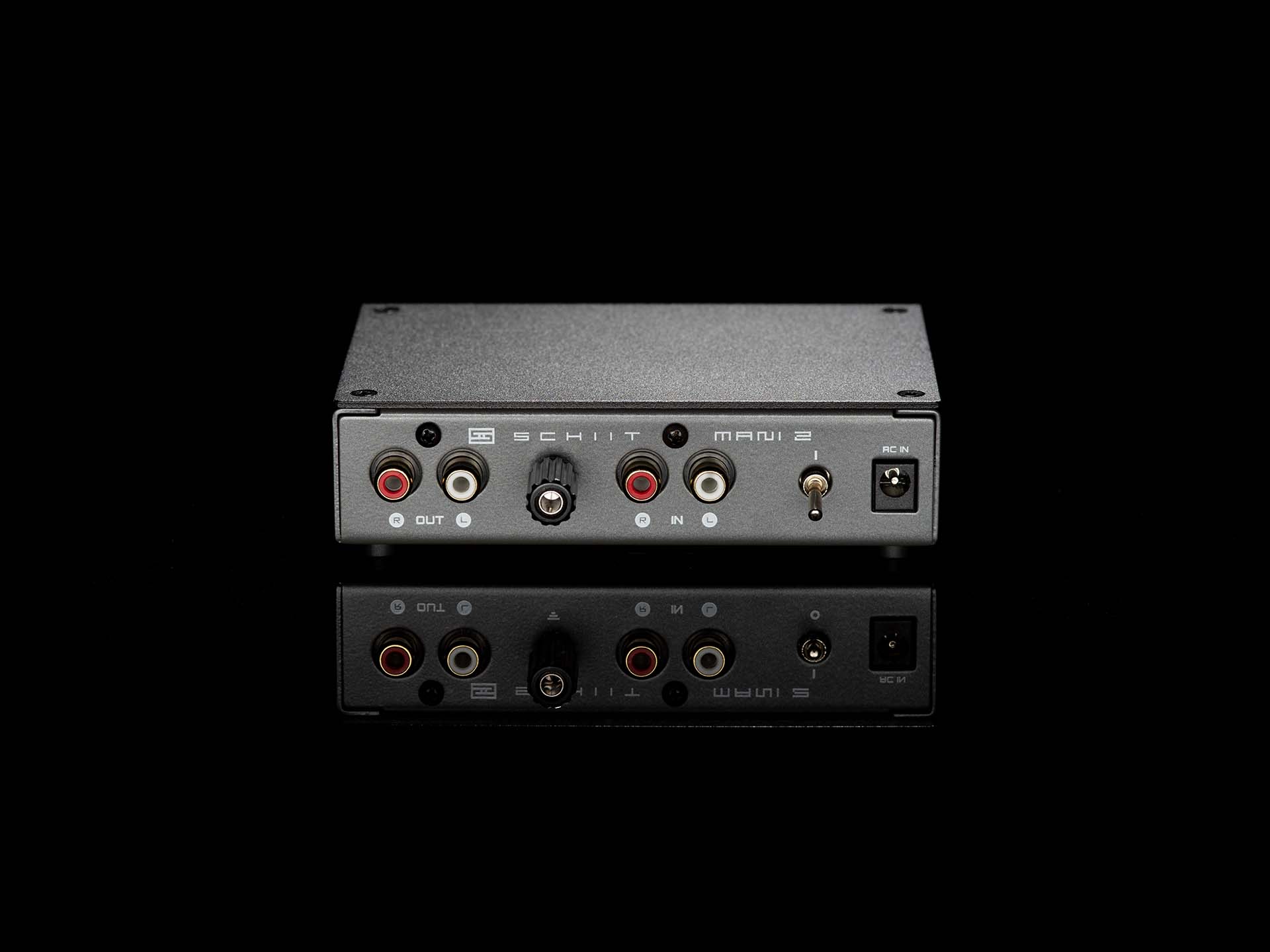

Mani 2 is simply the highest-performance affordable phono preamp, period. With super low noise and high RIAA accuracy, plus flexibility for pretty much any cartridge, MM, MC, or MI, it sets the standard for performance and capability in an affordable phono stage.

Simply Stunning Performance

Mani 2 provides super low-noise performance that’s usually only seen in much more expensive phono preamps. Combining TI’s low-noise OPA1612 with a passive RIAA network with 2% precision film capacitors and 0.1% thin-film resistors in a DC-coupled topology, with advanced dual-filtered power supply and +/-16V rails, as well as switchable 1- or 2-pole passive LF filter, provides exceptional transparency and accuracy, as well as high overload margin, in an affordable phono preamp.

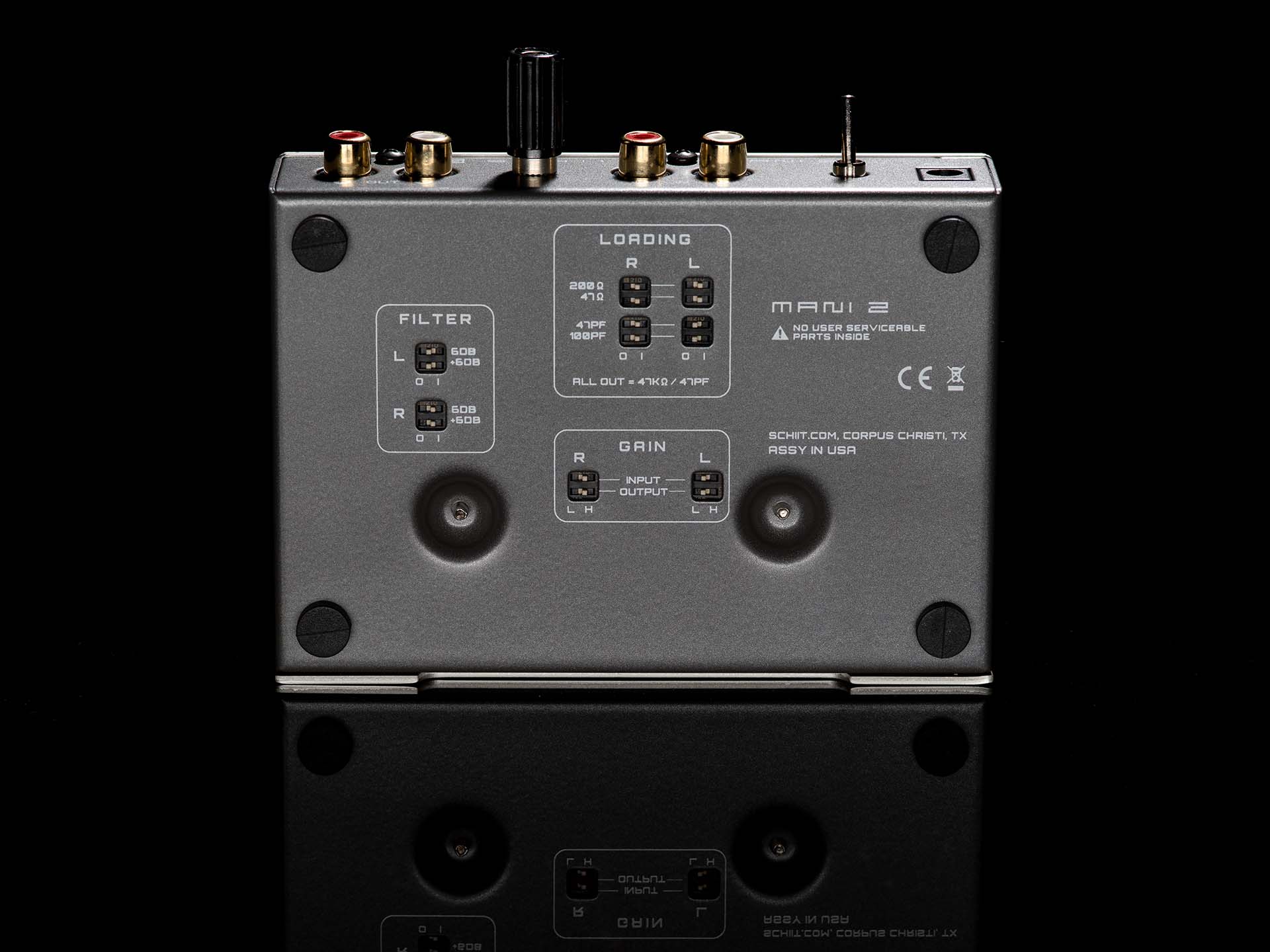

Ultimate Flexibility—Loading, Gain, and LF Filtering

Mani 2 doesn’t sacrifice flexibility for low-cost, either. In fact, Mani 2 is the most flexible, capable affordable phono preamp, period. You have total control over:

  • Gain:Choose 33, 42, 48, or 60dB of gain, for virtually any cartridge from Decca to low-output MC and MI models.
  • Loading:Choose 47KΩ, 200Ω, 47Ω, or 38Ω, and 47pF, 100pF, 150pF, or 200pF for virtually any MM, MC, or MI cartridge
  • LF Filter:Choose 6dB/octave or 12dB/octave of purely passive low-frequency filtering to help with warped records or other subsonic problems.
Schiit Audio Mani
Schiit Audio Mani Sale priceFrom $319.00 SGD
Specifications

Gain 1 = L, Gain 2 = L (Decca Mode)

  • Gain: 33dB
  • THD: <0.0003%, A-weighted, ref 2V RMS
  • SNR: >108dB, A-weighted, ref 2V RMS
  • Crosstalk: -90dB, 20-20kHz
  • Sensitivity: 5.3mV for 300mV output
  • Overload Margin: >20dB

Gain 1 = L, Gain 2 = H (Standard MM Mode)

  • Gain: 42dB
  • THD: <0.0006%, A-weighted, ref 2V RMS
  • SNR: >98dB, A-weighted, ref 2V RMS
  • Crosstalk: -90dB, 20-20kHz
  • Sensitivity: 1.9mV for 300mV output
  • Overload Margin: >20dB

Gain 1 = H, Gain 2 = L (Low Output MM/High Output MC Mode)

  • Gain: 48dB
  • THD: <0.001%, A-weighted, ref 2V RMS
  • SNR: >96dB, A-weighted, ref 2V RMS
  • Crosstalk: -80dB, 20-20kHz
  • Sensitivity: 1.06mV for 300mV output
  • Overload Margin: >20dB

Gain 1 = H, Gain 2 = H (MC Mode)

  • Gain: 60dB
  • THD: <0.0015%, A-weighted, at 2V RMS
  • SNR: >87dB, A-weighted, ref 2V RMS
  • Crosstalk: -75dB, 20-20kHz
  • Sensitivity: 0.33mV for 300mV output
  • Overload Margin: >20dB

Input Loading:

  • Selectable R: 47KΩ, 200Ω, 47Ω, or 38Ω
  • Selectable C: 47pF, 100pF, 150pF, or 200pF

RIAA Accuracy:+/- 0.2dB, 20-20kHz

Low Frequency Filter:6dB/octave or 12dB/octave at 15 Hz, fully passive

Output Impedance:75 ohms

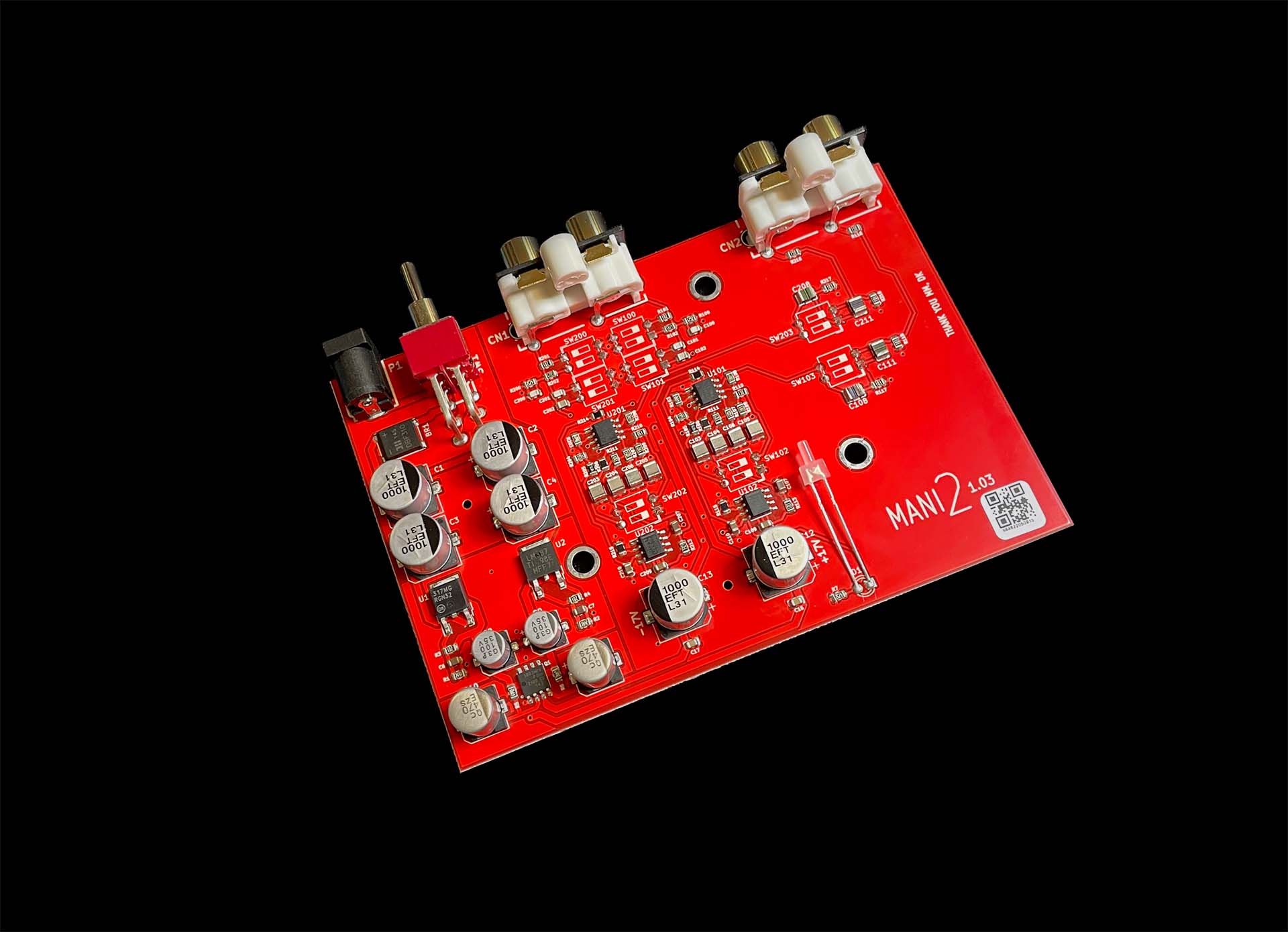

Topology: Fully passive RIAA network with OPA1612 gain stages, OP07 DC servo, switchable passive CR LF filter, 1- or 2- pole, 0.1% thin-film resistors, and 2% film capacitors

Power Supply: “wall wart” style 16VAC transformer, dual-filtered, regulated +/- 16V rails

Power Consumption:4W

Size:5 x 3.5 x 1.25”

Weight:1 lb
