Load Impedance headphones out - direct |
4- 600 ohms |
Load Impedance speakers out |
4-16 ohms |
Output Power : |
8W/4 ohms, 11W/8 ohms, 5.5W/16 ohm, 2.7W/32ohm, 1.3W/64ohms, 0.6W/120 ohms, 0.3W/300 ohms, 0.15W/600 ohms at 1khz/sine |
Frequency Response: |
500mv/ in/sin. 10hz – 500kHz (-0.5dB/ -2dB) |
Power Bandwidth: |
Better than 10-100kHz (-0.5db) at 5W |
Distortion: |
Bether than 0,3% at 1khz |
Signal to Noise Ratio: |
Better than 90dB |
Input Impedance: |
100kΩ |
Input Sensitivity for full OUT: |
0,7V AC |
Input Connections: |
INPUT 1- 2 RCA Single-Ended, INPUT 2 - 2 XLR 3-pin Balanced (female) |

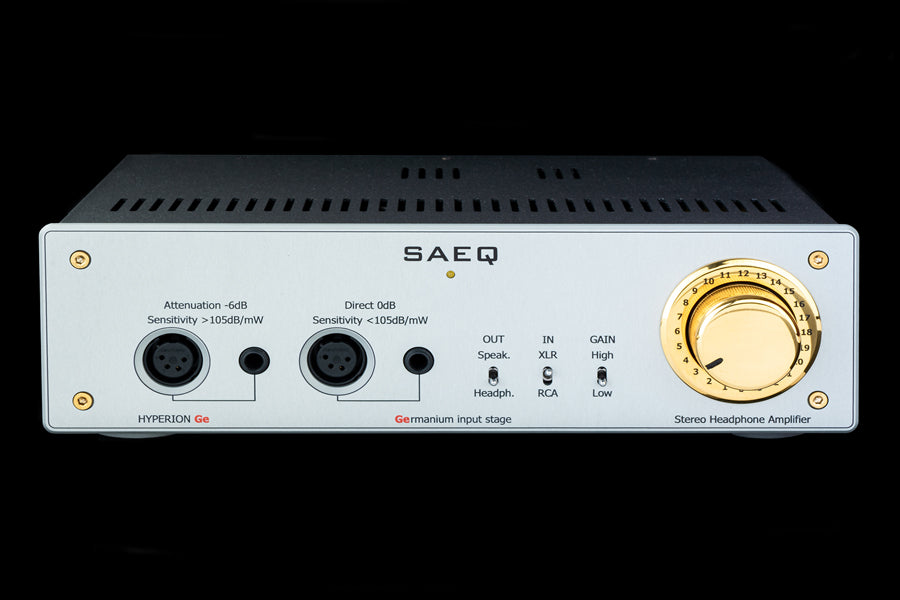

Output Connections: |
1 x XLR 4-pin female +6,3mm stereo jack-direct, 1 x XLR 4-pin female + 6,3mm stereo jack- attenuation -6dB (balanced Planar & Dynamic headphones) |
Max Power Consumption: |
50W, without signal 15W |
Workng voltage: |
115V/230VAC (selector switch) or 100V (requires internal connection) In fuction selector position |
Dimensions: |
Height 90mm, Width 305mm, D 240mm |
Weight: |
netto 5,0kg / brutto 6,3kg |
