[Pre-Order Starts] Luxury Precision E7 Exclusive Edition

Pre-Order

Shipping starts March 2024

BEFORE YOU ADD TO CART
Sale price$5,503.67 SGD

Tax excluded. Shipping calculated at checkout

One machine infinite possibilities.

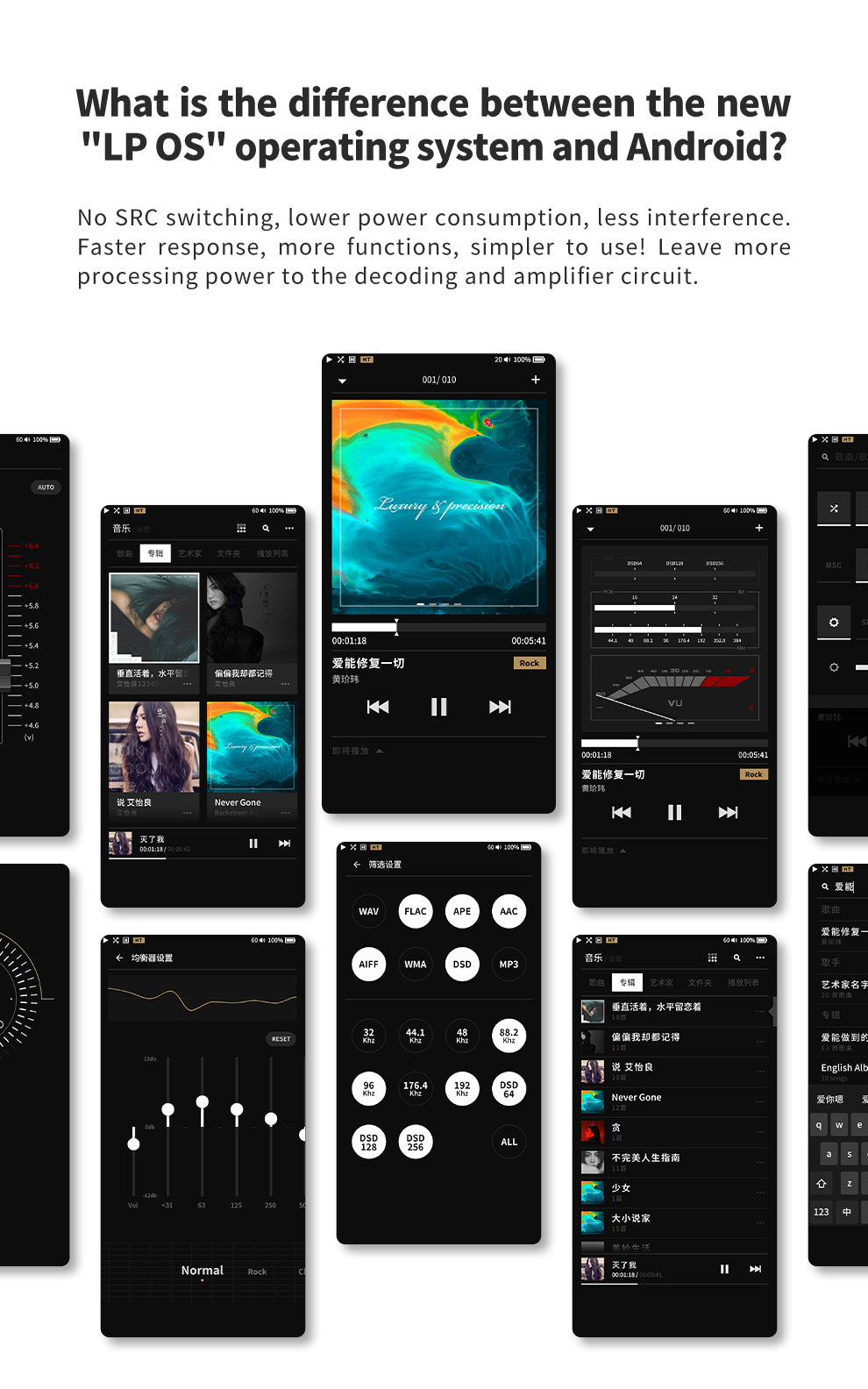

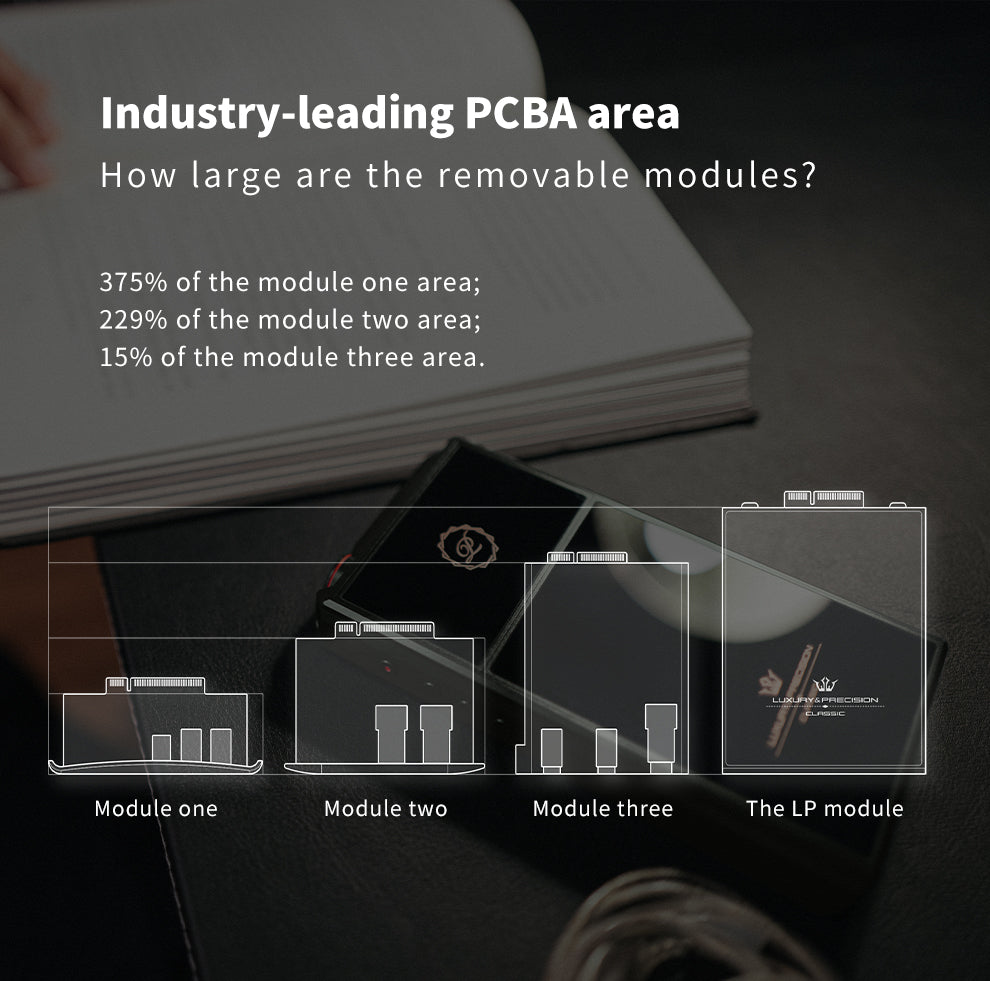

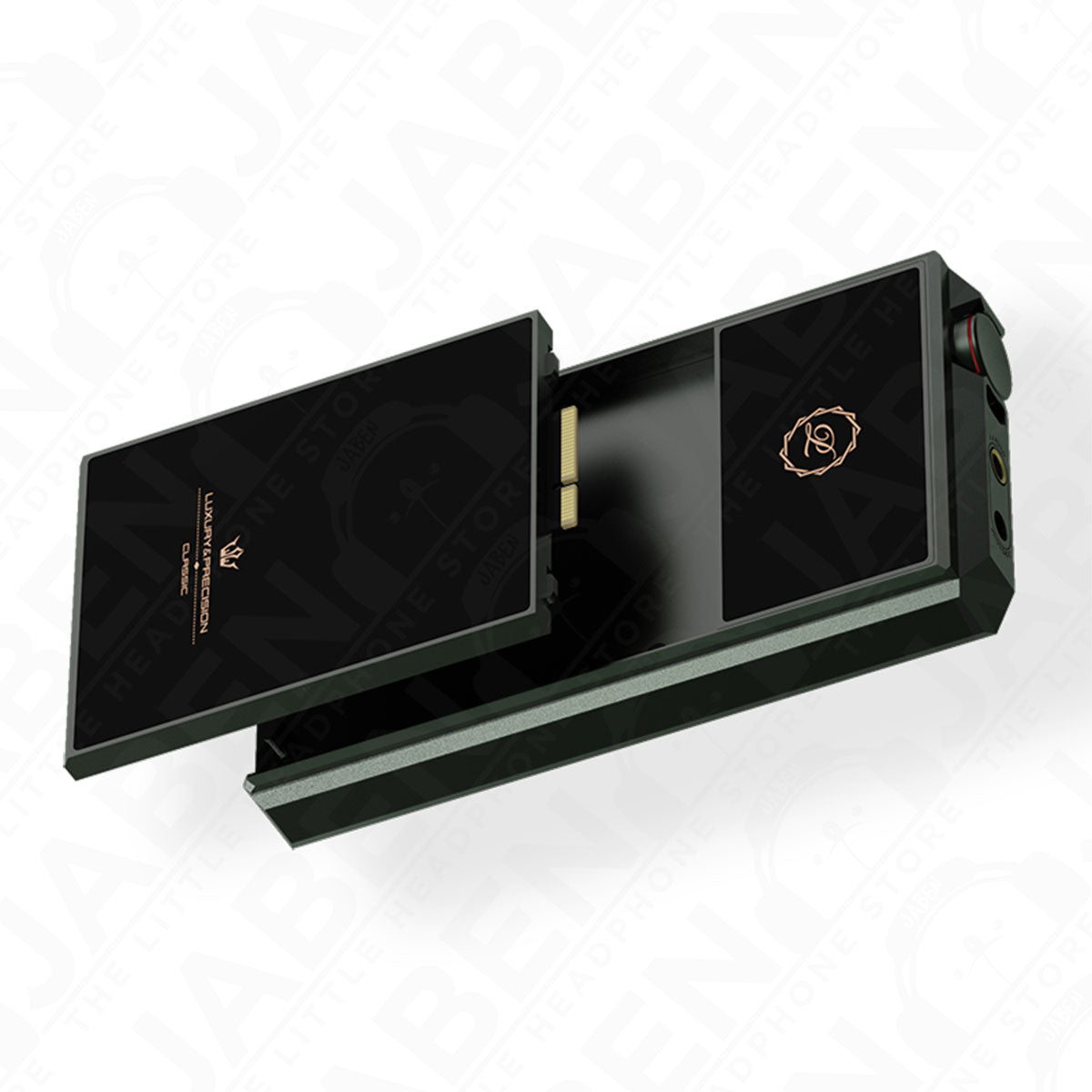

Discontinued chips, no wastage - dual AK4497, unleashes the full potential of the flagship DAC; Large surface area, endless possibilities - the industry's largest interchangeable module for analog PCBA area; Non-Android, very pure - a brand new LP OS with a more powerful MCU.

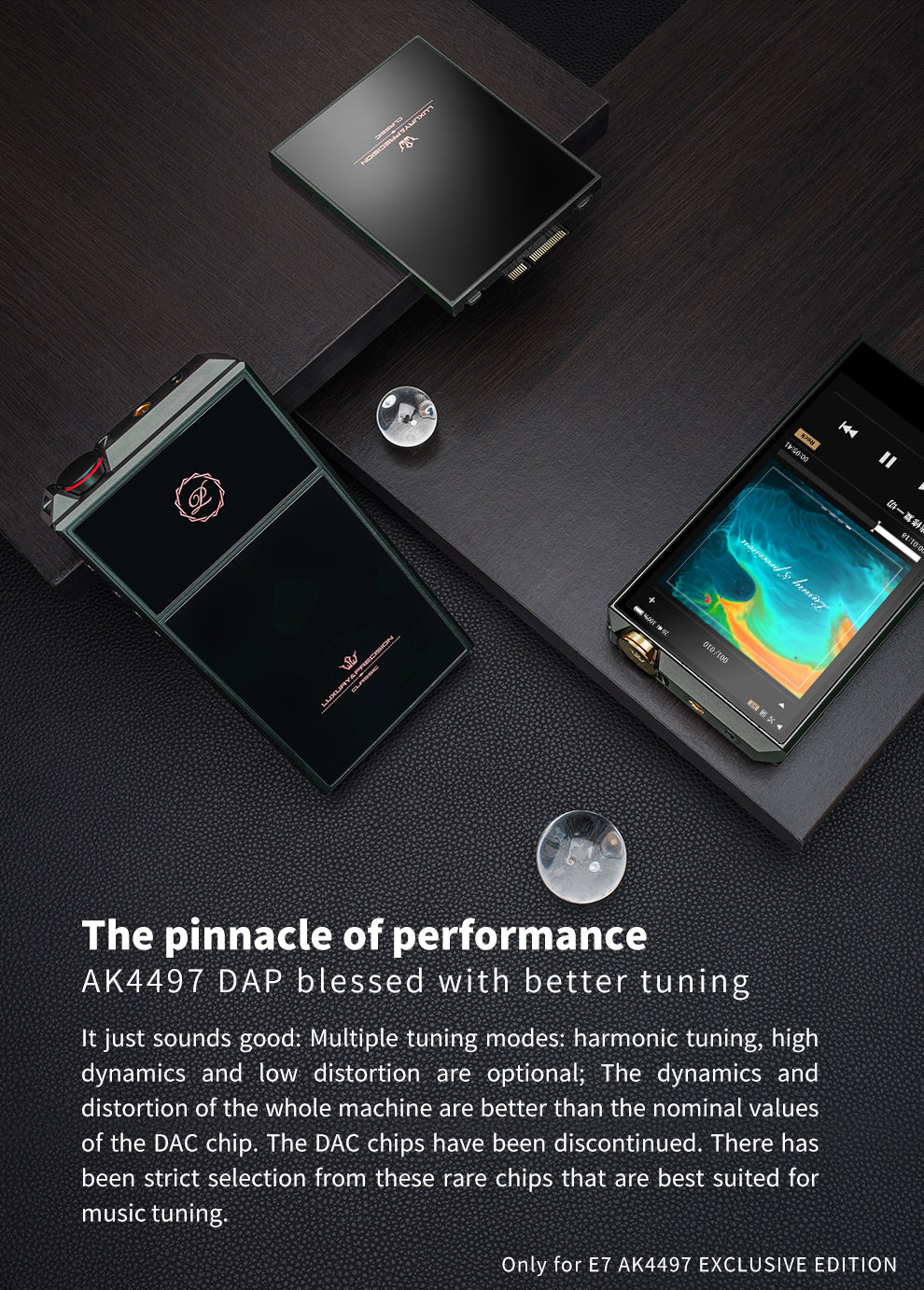

The new DAP is made possible by utilizing the last batch of AK4497 DACs in the world

AK4497 is a voltage-type DAC, not the current-type DAC AK4499, and therefore does not require additional I/V conversion.It is more suitable for portable DAPs. When designed properly, we can fully optimize its potential.In terms of actual performance: a portable DAP using AK4497 exceeds AK4499 based DAP in all aspects.

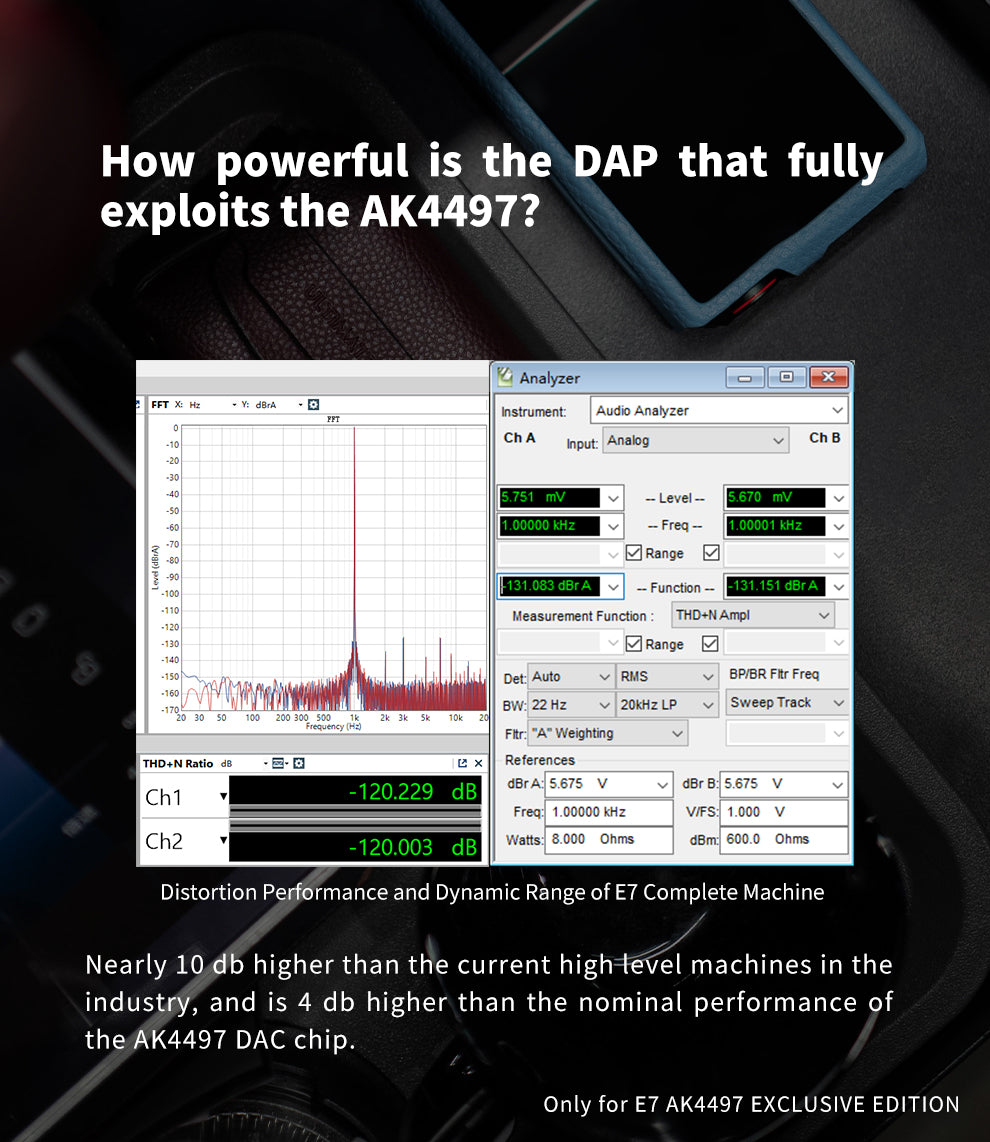

How powerful is the DAP that fully exploits the AK4497?

Please see listing photo for more details

7 Of E7

Read more about the development story here

Specifications
GENERAL SPECS

COLOR Blackish Green

SIZE 71 x 133 x 20 mm

WEIGHT 300g

DISPLAY 5 inches (1080*1920)

DAC AK4497 * 2

CLOCK SOURCE Ultralow phase Noise -160db OSC *2

BUTTONS ALPS

TF CARD Theoretically support up to 1TB

BATTERY TYPE Li-polymer battery

BATTERY CAPACITY 4700mA/H

POWER SUPPLY POWER IN DC 5V 2A

BATTERY LIFE AND TEST CONDITIONS

  • 3.5mm Po output:>8h
  • 4.4mm Po output:>5h
  • Screen Off; WAV 48kHz/24bit; vol: 70; Load: 32Ω

RECOMMENDED HEADPHONE IMPEDANCE 8-300ohm

EQUALIZER 10-band EQ (±12dB), 6 presets+3custom preset

GAIN CONTROL Low/high

DOP SPDIF Supported

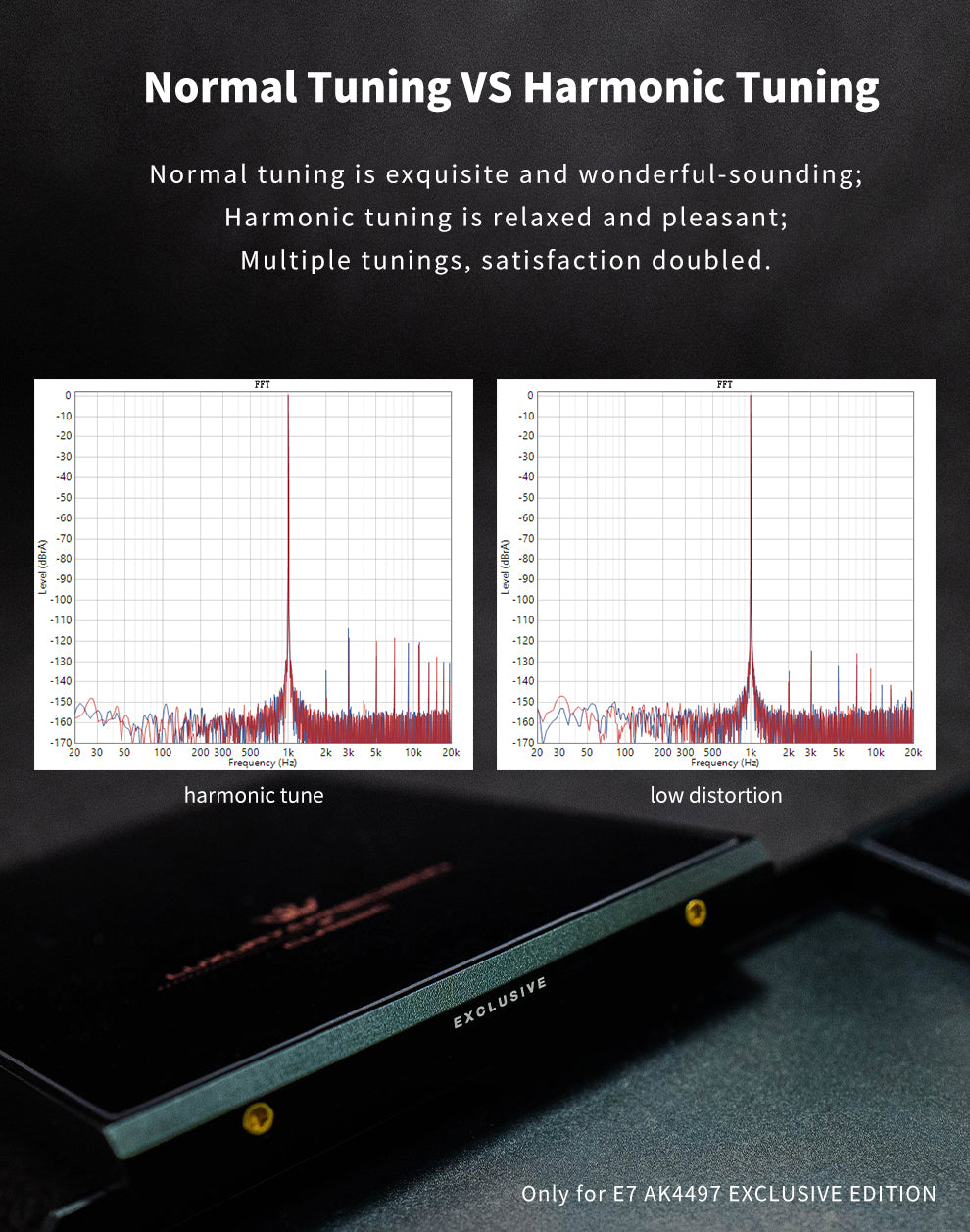

DIGITAL FILTER Six types of digital filters

PHASE INVERSION Supported

USB CONNECTION MODE MSC/Audio/Charge

USB DAC Supported

SAMPLING RATE SUPPORTED

  • PCM: 24bit 384KHz
  • DSD: 11.2896MHz (DSD256)

FILE FORMAT SUPPORT APE AAC ALAC FLAC WAV MP3 WMA DFF DSF AIFF SACD-ISO

AUDIO PORTS

  • 3.5mm SE(LO、PO、SPDIF)
  • 4.4mm balanced(LO、PO)
LO OUTPUT PARAMETERS(3.5MM SE)

SNR >127db(A Weighting)

DYNAMIC RANGE >127db(A Weighting)

THD+N < 0.00022% @24bit 96KHz Awt

FREQUENCY RESPONSE 20Hz-20KHz +/- 0.2db

CROSSTALK > 98db

OUTPUT VOLTAGE(RMS)

  • High Gain 2.05/2.75Vrms
  • Low Gain 0.55/0.7Vrms
LO OUTPUT PARAMETERS(4.4MM BALANCED)

SNR >130db(A Weighting)

DYNAMIC RANGE >130db(A Weighting)

THD+N < 0.0001% @24bit 96KHz Awt

FREQUENCY RESPONSE 20Hz-20KHz +/- 0.2db

CROSSTALK > 115db

OUTPUT VOLTAGE

  • High Gain 4.1/5.5 Vrms
  • Low Gain 1.1/1.5 Vrms
PO OUTPUT PARAMETERS(3.5MM SE)

OUTPUT POWER@16Ω 425mW

OUTPUT POWER@32Ω 230mW

OUTPUT POWER@100Ω 75mW

SNR >127db(A Weighting)

DYNAMIC RANGE >127db(A Weighting)

THD+N < 0.00025% @24bit 96KHz Awt

FREQUENCY RESPONSE 20Hz-20KHz +/- 0.2db

OUTPUT IMPEDANCE 1.2Ω

CROSSTALK > 75db

OUTPUT VOLTAGE

  • High Gain 2.05/2.75Vrms
  • Low Gain 0.55/0.7Vrms

PO OUTPUT PARAMETERS(4.4MM BALANCED)

OUTPUT POWER@32Ω 560mW

OUTPUT POWER@64Ω 470mW

OUTPUT POWER@100Ω 300mW

OUTPUT POWER@300Ω 100mW

SNR >130db(A Weighting)

DYNAMIC RANGE >130db(A Weighting)

THD+N < 0.0001% @24bit 96KHz Awt

FREQUENCY RESPONSE 20Hz-20KHz +/- 0.2db

OUTPUT IMPEDANCE 2.4Ω

CROSSTALK > 113db

OUTPUT VOLTAGE

  • High Gain 4.1/5.5 Vrms
  • Low Gain 1.1/1.5 Vrms

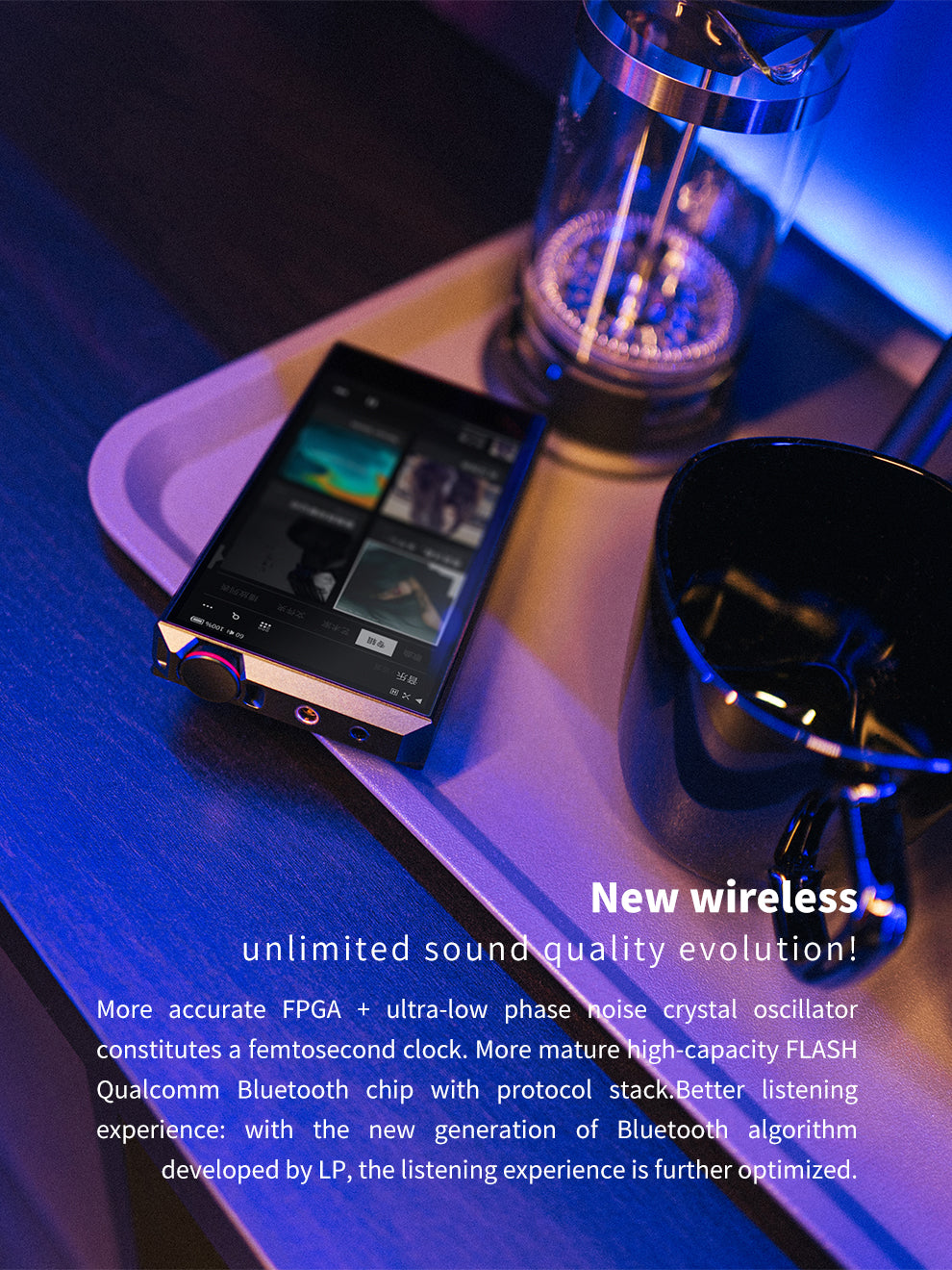

BLUETOOTH

VERSION Bluetooth 5.0

CODEC TYPE LDAC、APTX、APTXHD、APTXLL、AAC、SBC

DIRECTION Bluetooth Receiver

TRANSMISSION DISTANCE 15 m

BLUETOOTH CLOCK SOURCE FPGA Generation

What You Are Getting

E7 Exclusive Edition Body x 1

AK4497 Exclusive Edition Attachment x 1

TYPE A-C 3.2 cable x 1

TYPE C-A 3.2 adapter x 1

Manual x 1

Warranty x 1

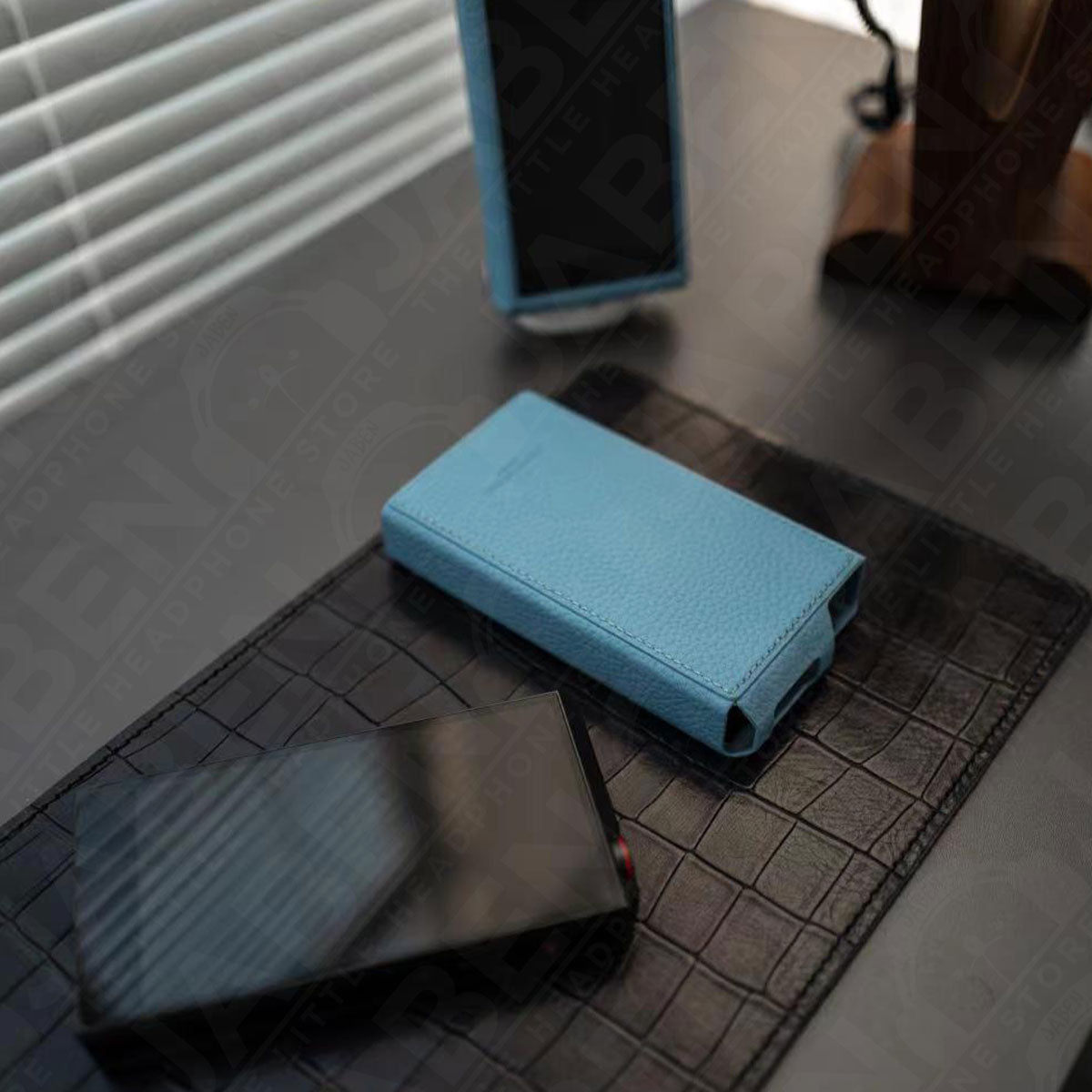

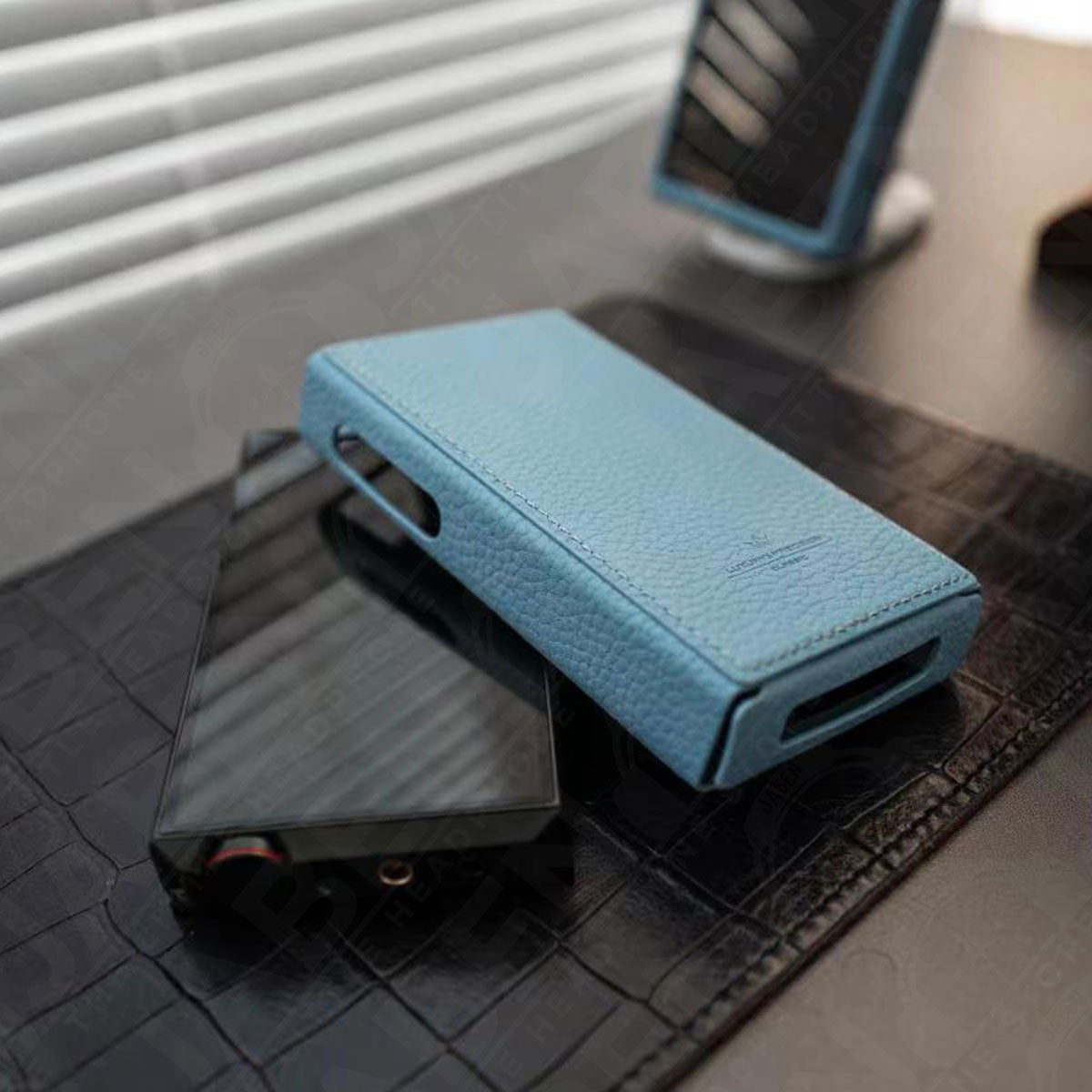

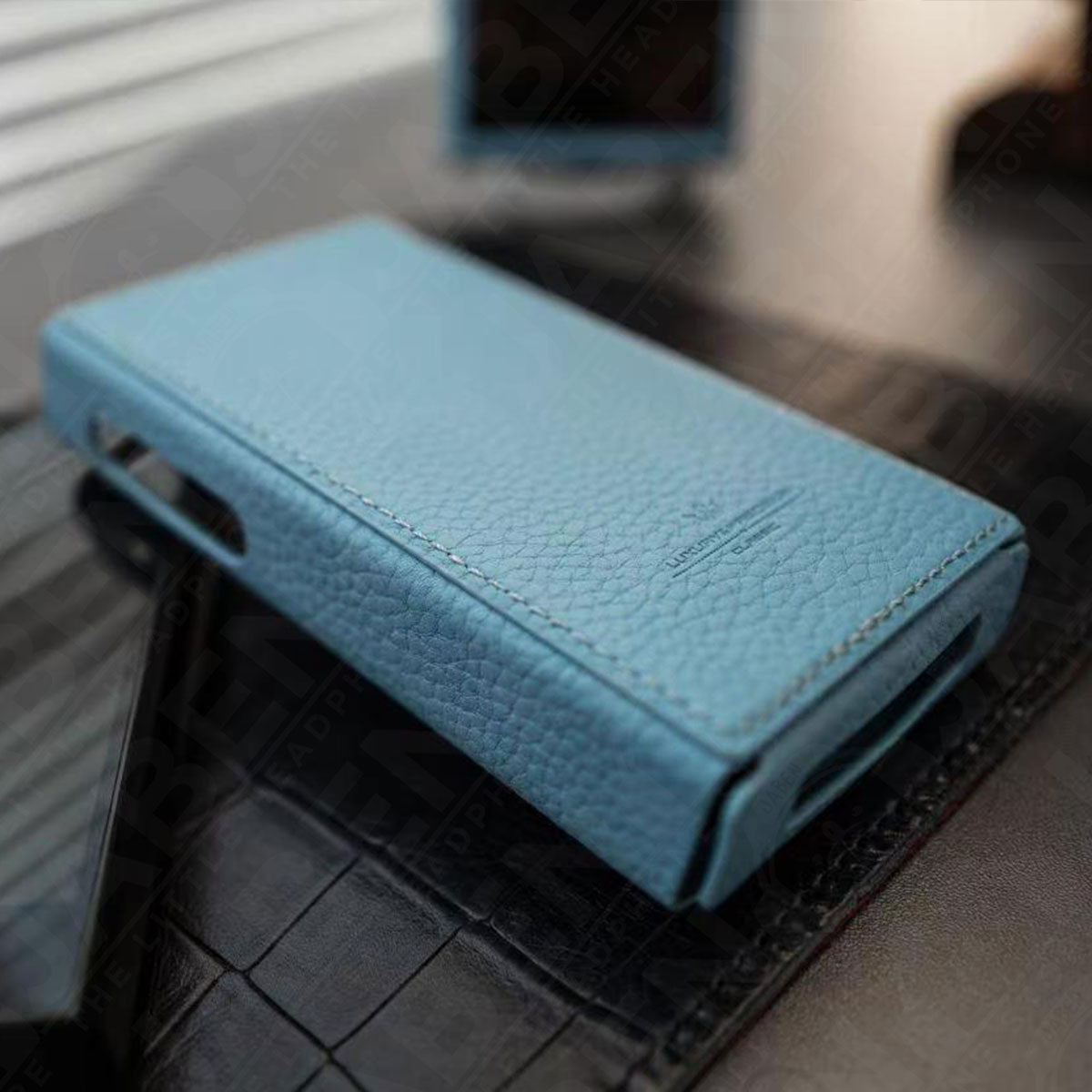

Bespoke Leather Case x 1

Fabric cloth sack x 1
