iBasso AMP12 Module

Installment option available at check out page

Package Content

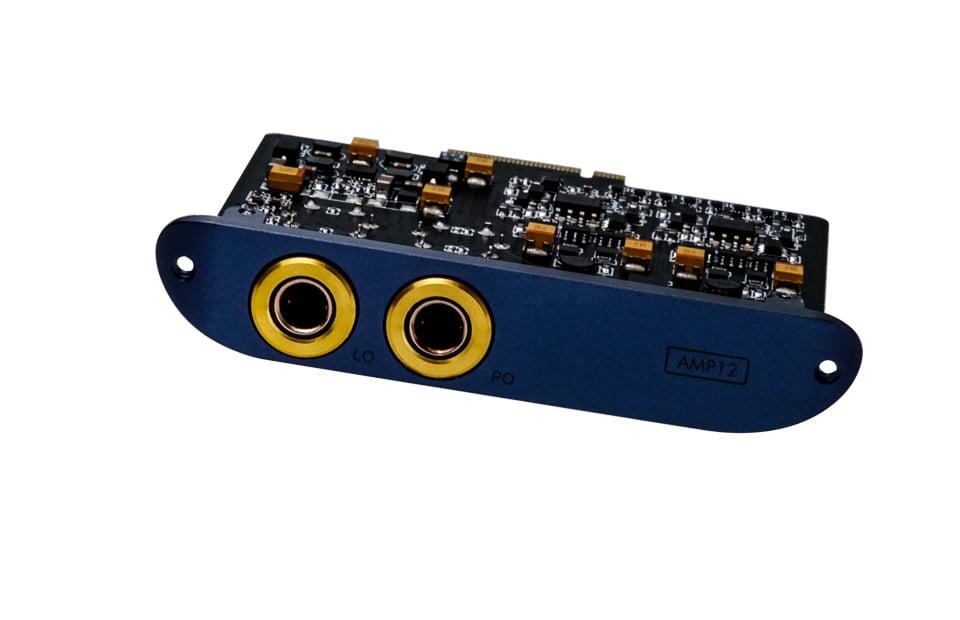

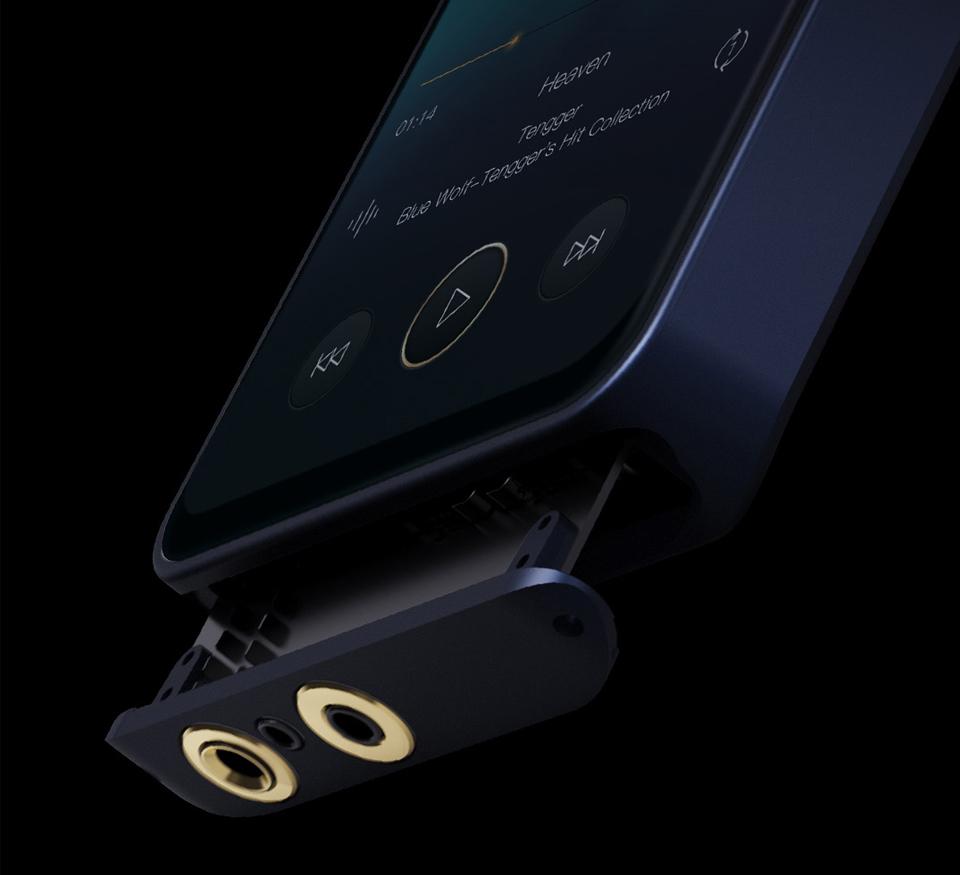

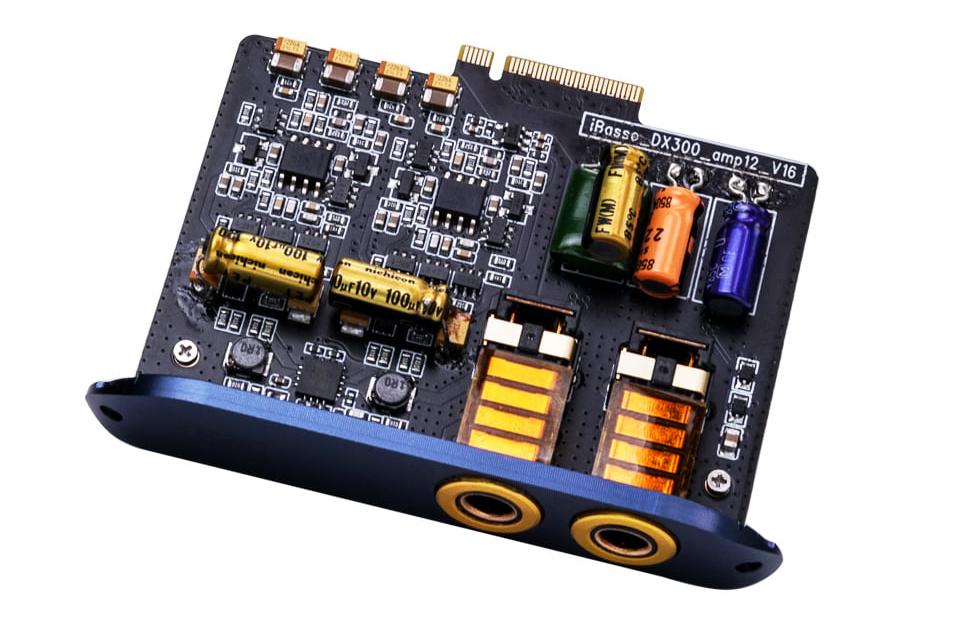

  • AMP12 brings a fully discrete balanced circuitry to the DX300 with its dedicated 4.4mm headphone and 4.4mm line-out ports. It offers an ultra-powerful output with a maximum output voltage of up to 8.3V and low distortion ratings of -113dB. AMP12 has every characteristic of a powerful Class A amplifier offering high-fidelity output with ultra-low distortion and high dynamic range.

    >Complete Balanced Circuitry.
    >Balanced 4.4mm TRRRS headphone power out.
    >Dedicated 4.4mm TRRRS line-out.
    >True Pentaconn Socket.
    >Quiet Sound With Clean background & Wide Soundstage Presentation.
    >Independent battery power supply.

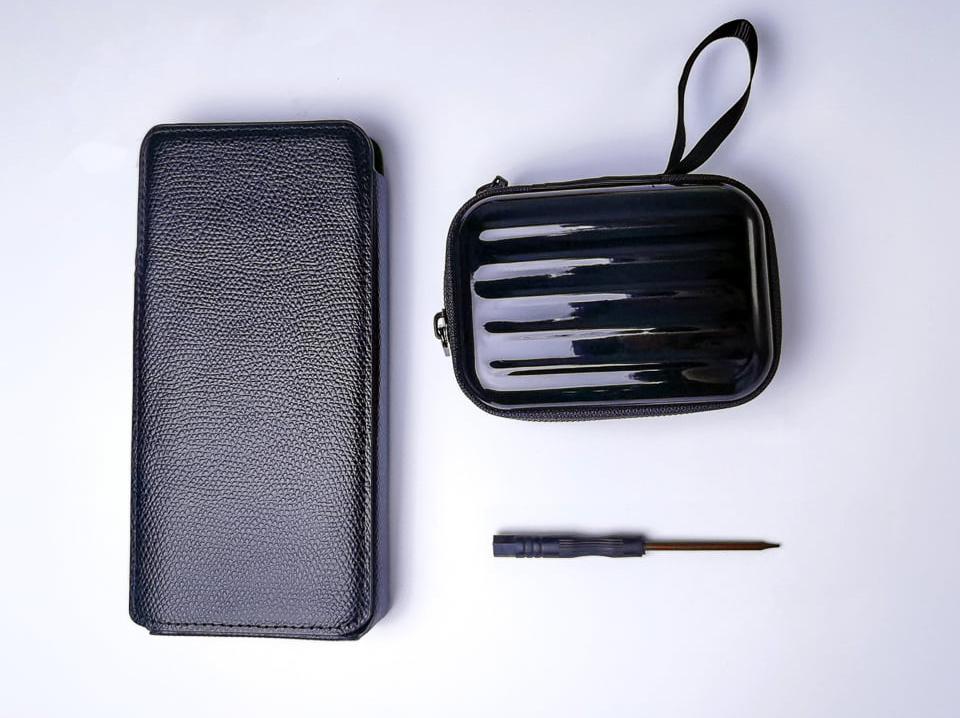

    >A Torx and a Black Case for the DX300 (leather).

  • Output Specifications
    (Headphone Output):
    >Output interface: 4.4mm Balanced.
    >Maximum output level: 8.3Vrms.
    >Frequency response: 10Hz-45kHz(+/-0.9dB).
    >THD+N: -113dB(No Load), -112dB(300 ohm load), -107dB(32 ohm load).
    >Dynamic range: 126dB.
    >Signal to noise ratio: 126dB.
    >Crosstalk: -115dB.

    Line-Out Specifications:
    >Maximum output level: 4.1Vrms.
    >THD+N: -116dB(No load).
    >Dynamic range: 128dB.
    >Signal to noise ratio: 128dB.
    >Cross talk: -102dB.
