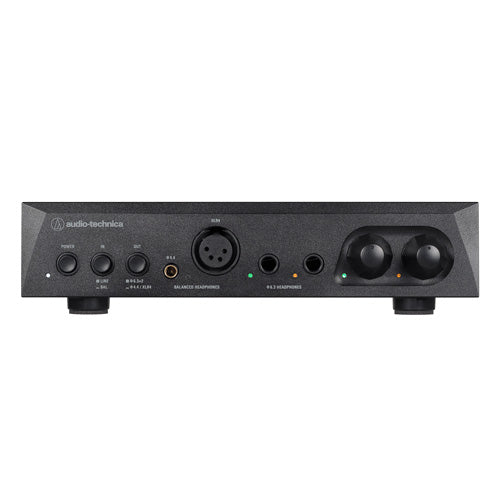

Audio-Technica AT-BHA100
Installment option available at check out page
$1,294.44 SGD
Features
Package Content
- The increased popularity of high-resolution digital sound sources has resulted in a growing need for high-quality sound with balanced hi-fi headphones. To meet this need, Audio-Technica is offering the AT-BHA100 balanced headphone amplifier and AT-DAC100 digital-to-analogue converter, ideal for use with hi-fi headphones such as the ATH-ADX5000, the ATH-AW Series, and the ATH-MSR7b. This compact desktop unit is compatible with Direct Stream Digital (DSD) and other high-definition formats to reproduce every detail of the original recording.
- Hybrid system with vacuum tubes and power transistors
- Four independent preamp vacuum tubes
- Four power transistors, one for each powered amp circuit
- Four completely independent amplifier circuits
- Operational amp that highlights the superiority of vacuum tubes
- Relay switches designed specifically for vacuum tubes
- High-quality audio-grade components
- Film capacitors from WIMA and Shinyei Capacitor
- Four-layer board structure
- Gain selector switch

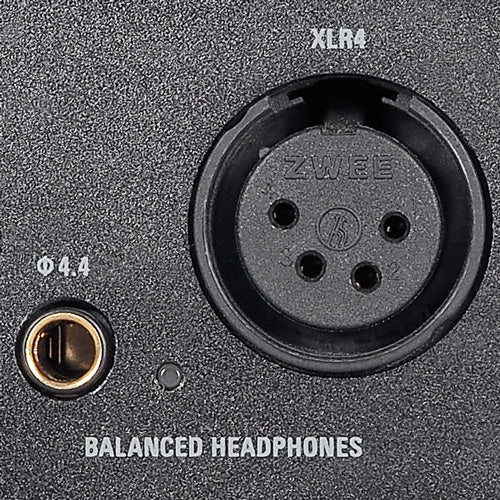

- Two balanced outputs
- Two 6.3 mm (1/4ʺ) unbalanced outputs
- Line-through output

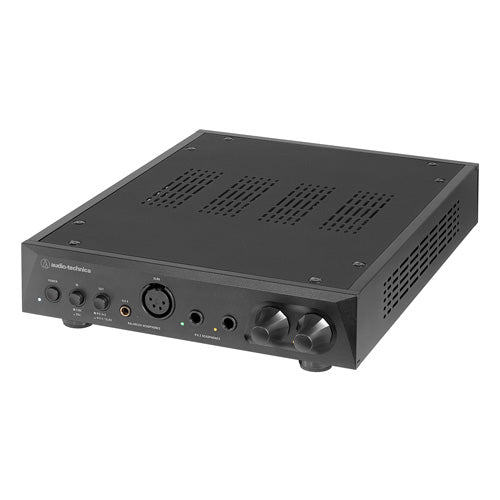

- Beautiful vented design showcases the internal vacuum tubes

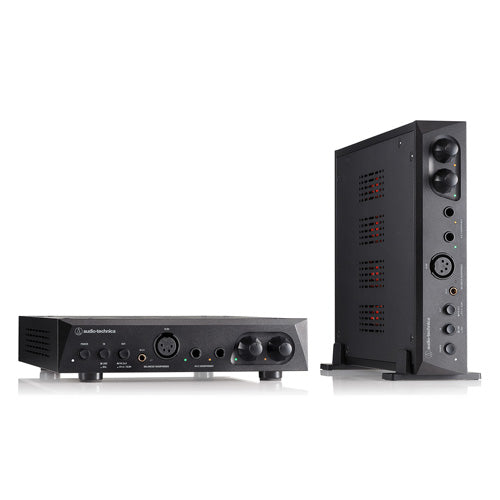

- Horizontal or vertical orientation for greater layout flexibility
- External AC adapter
-
AT-BHA100 Specifications
Load Impedance16 - 600 ohmsFrequency ResponseLine input: 10 Hz to 100 kHz (0, -3 dB at 32 ohms and 10 mW output);
Balanced input: 10 kHz to 100 kHz (+0.5, -3 dB at 32 ohms and 10 mW output)Total Harmonic Distortion< 0.25% (20 Hz to 20 kHz at 32 ohms and 1 mW)Input ConnectionsLine input, Balanced inputOutput Connector6.3 mm headphone output, Balanced output (4.4 mm/XLR 4-pin)Channel Separation6.3 mm headphone output: 75 dB (load: 32 ohms, 1 kHz)
Balanced output: 100 dB (load: 32 ohms, 1 kHz)Gain6.3 mm headphone output:10 dB (high gain) / 1.5 dB (low gain)
Balanced output:16 dB (high gain) / 7 dB (low gain)Noise6.3 mm headphone output:-100 dBv (A-weighted high gain) / -103 dBv (A-weighted low gain)
Balanced output:-92 dBv (A-weighted high gain) / -95 dBv (A-weighted low gain)Power Supply100 - 240 VAC, 50/60 Hz, 15 VDC/2.4 A (AC adapter provided)Rating CapacityMaximum 25 WDimensions210 mm x 266 mm x 44 mm (W x D x H) (excluding protrusions)WeightAbout 1.8 kgAccessories FurnishedAC adapter (approx. 1.5 m, Power cord, Foot x 6, Stand x 2
- AT-BHA100 x 1

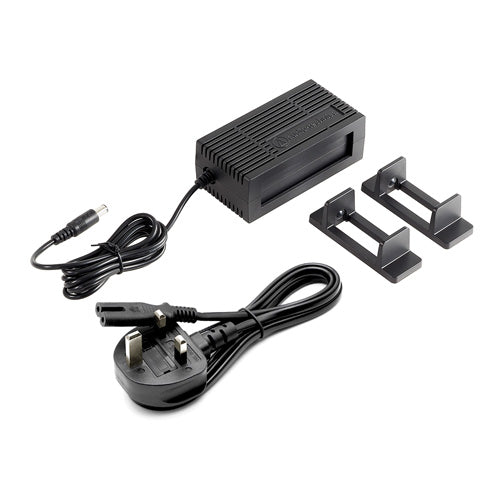

AC Adaptor x 1
Power Cord x 1
Foot x 6
Stand x 2
