System requirements
|
Computer equipped with a USB 2.0 compatible USB port
CPU: Intel Core i3 CPU 2.2 GHz or higher, or AMD CPU equivalent to Intel RAM: 32 bit OS - 2 GB or more, 64 bit OS - 4 GB or more |
Supported Operating Systems
|
Windows 8.1, Windows 10, and Mac OS X or later
|

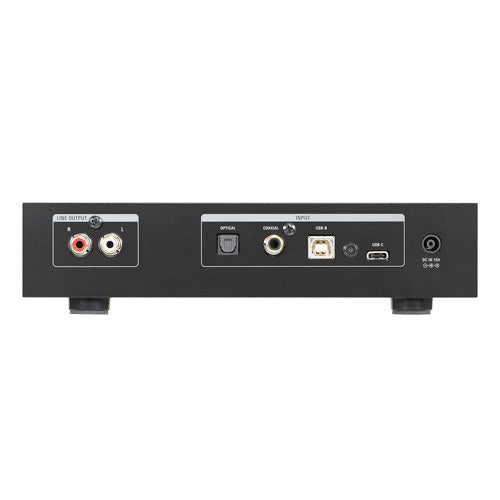

Input Connections
|
USB Type-B (44.1 kHz ~ 768 kHz, 16 ~ 32 bit DSD64, DSD128, DSD256, DSD512)

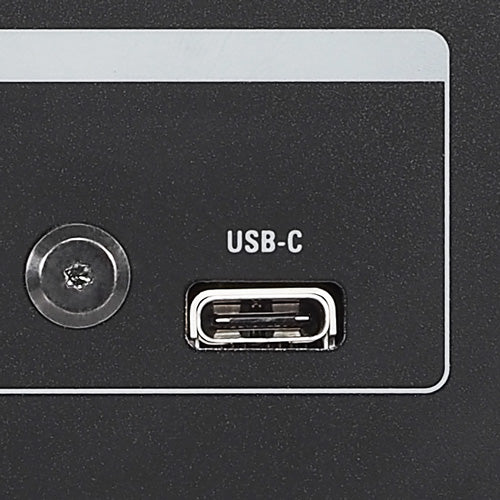

USB Type-C (44.1 kHz ~ 768 kHz, 16 ~ 32 bit DSD64, DSD128, DSD256, DSD512) Coaxial digital (32 kHz ~ 192 kHz, 16 / 24 bit) Optical digital (32 kHz ~ 192 kHz, 16 / 24 bit) |
Output Connector
|
Analog output (pin jack) × 2
|
Frequency Response
|
5 Hz ~ 90 kHz (0, -3 dB)
|
Total Harmonic Distortion
|
>0.005% (20 Hz ~ 20 kHz)
|
Signal-To-Noise Ratio
|
105 dB ( A-weighted, 1V rms output)
|
Channel Separation
|
105 dB (20 Hz ~ 20 kHz)
|
Rating Capacity
|
Maximum 3 W
|
Power Supply
|
100 - 240 VAC, 50/60 Hz, 15 VDC/2.4 A (AC adapter provided)
|
Dimensions
|
210 mm x 135 mm x 44 mm (W x D x H) (excluding protrusions)
|
Weight
|
About 1.0 kg
|
Accessories Furnished
|

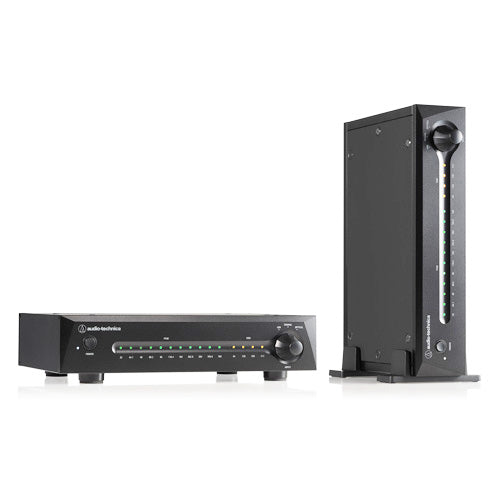

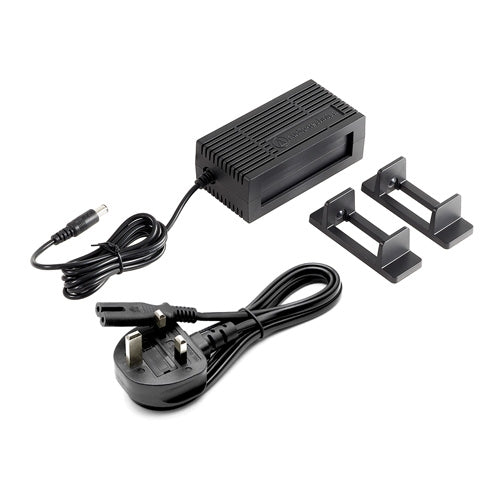

AC adapter (approx. 1.5 m, Power cord, Foot x 6, Stand x 2
|
