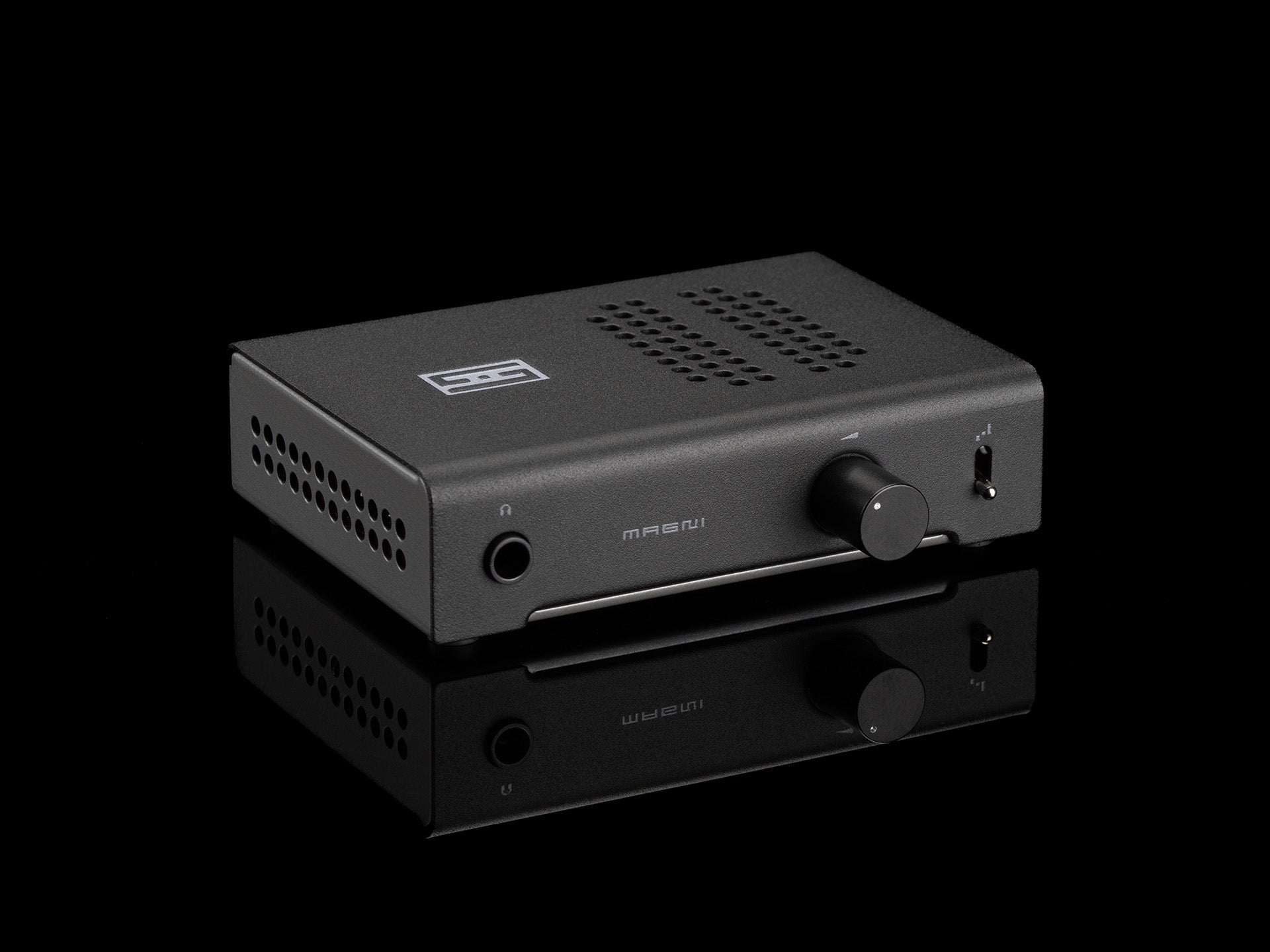

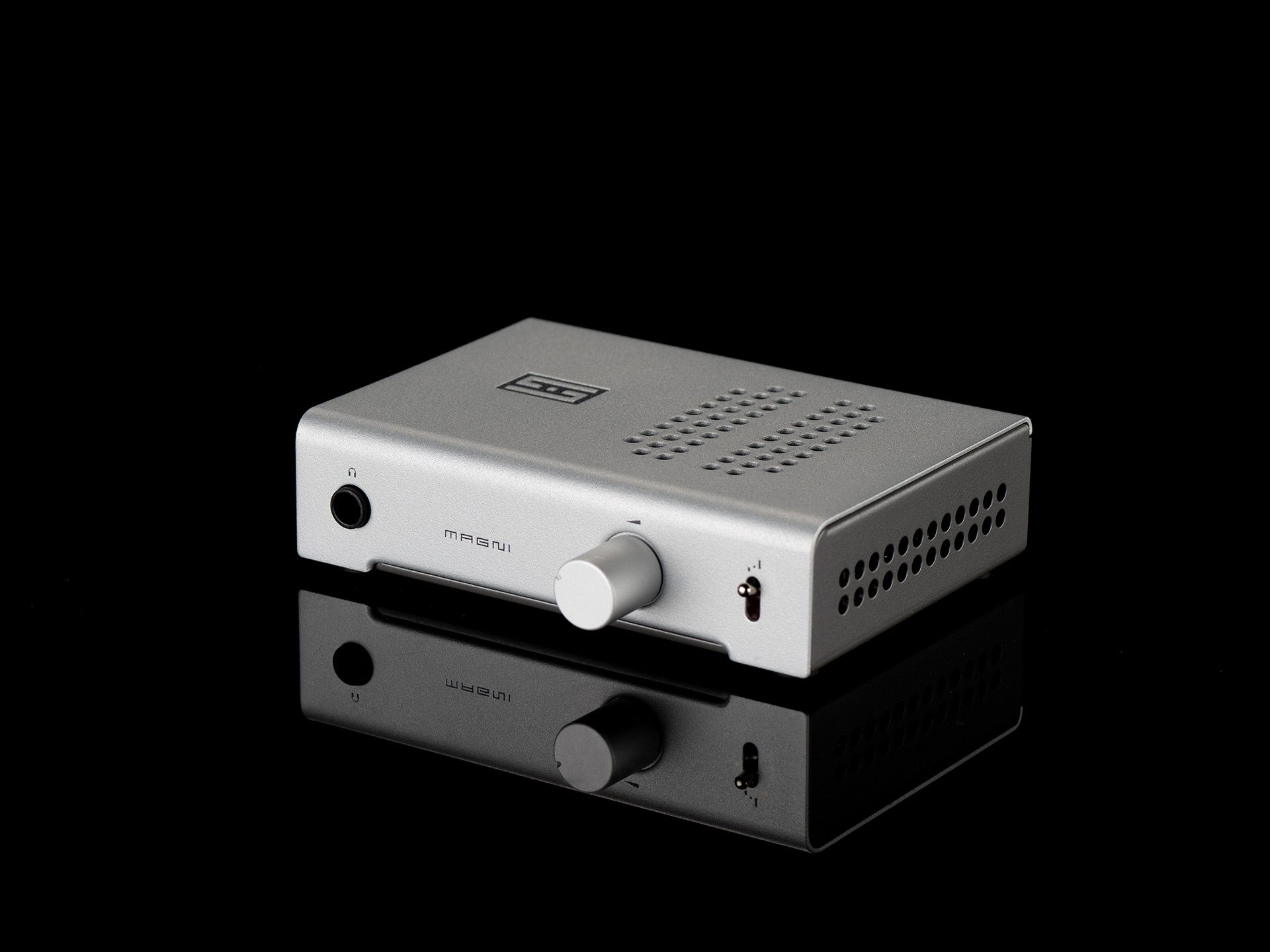

Schiit Audio Magni+

Installment option available at check out page

Features
Package Content
>> Please contact us for special shipping discount <<

Ten years ago, we introduced the first Magni. Since then, we’ve been refining and improving the line, to the point where Magni is now the only affordable, true no-excuses headphone amp and preamp. It’s literally the only headphone amp you’ll ever need.

Finish

  • No Excuses—Across the Board
    No excuses. Not in design, with discrete and advanced op-amp designs on the table. Not in parts, from its high-spec, sorted potentiometer to high-end thin-film resistors and silicon capacitors. Not in looks, with an all-new steel chassis using advanced stamping techniques. Not in safety, with new protection systems help protect your best headphones. And not even in manufacturing, with USA suppliers and Corpus Christi, Texas production.

    Exotic Discrete Design…or Insane Measured Performance
    Magni+ is the only affordable headphone amp that offers a exotic, current-feedback, all-discrete design—for the same price as our Magni Heretic, an op-amp design with a unique topology that gives you even more insane measured performance.

    • Choose Magni+ for the ultimate expression of an affordable all-discrete headphone amp—for hundreds less than other discrete designs (including our own!)
    • Choose Magni Heretic for insanely great measurements from a unique op-amp topology that includes no overall feedback and a massively paralleled feedforward output stage. Or if you like red--Magni Heretic has a red bottom chassis.

    Total Confidence for All Headphones
    Both Magni models offer three gain levels, including negative gain, to span all of your headphone needs. Use power-hungry planars…or super-sensitive IEMs. We’ve also incorporated a decade of learning in protection systems. Don’t worry about plugging your favorite headphones into Magni—included overcurrent and DC protection help ensure they’re totally safe.

    Create a Complete Desktop System

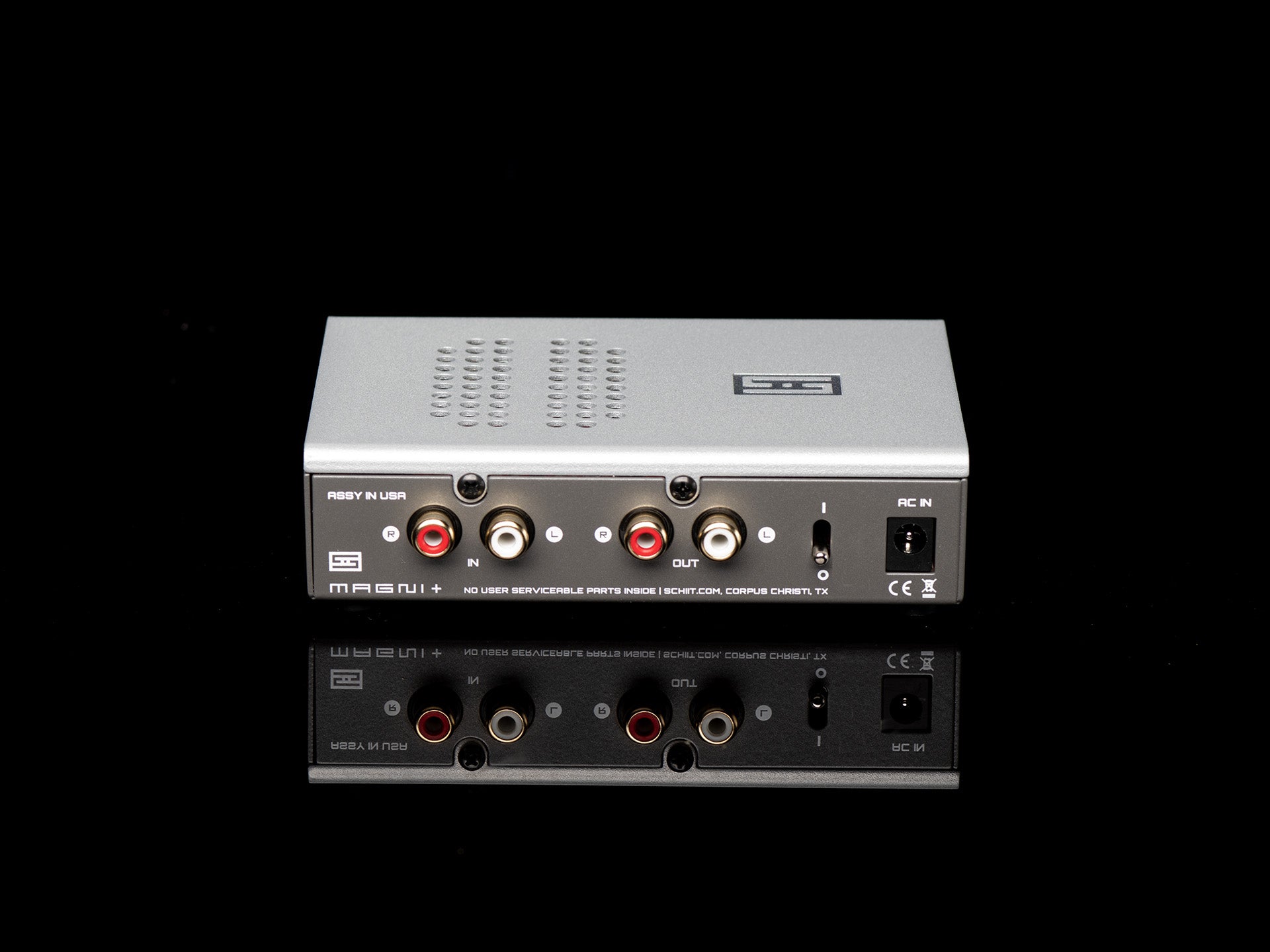

    All Magnis include preamp outputs. This means you can connect any Magni to your desktop powered monitors for a complete system—or even connect it to a speaker power amp and use it as a preamp.

    Designed and Built in Texas
    By “designed and built in Texas" this is what we mean: the vast majority of the total production cost of Magni—chassis, boards, transformers, assembly, etc—goes to US companies manufacturing in the US. In the case of the Magni family, the chassis are made in California, the PCBs are made in Nevada, and it all comes together at our Corpus Christi, TX facility.

  • Magni+

    Frequency Response: 20Hz-20Khz, +/-0.02dB

    Maximum Power, 16 ohms: 2.8W RMS per channel
    Maximum Power, 32 ohms: 2.4W RMS per channel
    Maximum Power, 50 ohms: 1.6W RMS per channel
    Maximum Power, 300 ohms: 410mW RMS per channel
    Maximum Power, 600 ohms: 215mW RMS per channel

    THD+N:

    High Gain: Less than 0.0007% (-102dB) ref 1V RMS, 300 ohms
    Low Gain: Less than 0.0003% (-110dB) ref 1V RMS, 300 ohms

    IMD:

    High Gain: Less than -103dB ref 1V RMS, 300 ohms, CCIF
    Low Gain: Less than -112dB ref 1V RMS, 300 ohms, CCIF

    SNR:

    High Gain: Greater than 110dB, unweighted, ref to 2V RMS
    Low Gain: Greater than 121dB, unweighted, ref to 2V RMS

    Crosstalk: Less than -85dB at 1V RMS out

    Output Impedance: Less than 0.2 ohms at either gain

    Input Impedance: 25k ohms

    Gain: -8dB, 0dB, or 14dB, selectable via front switch

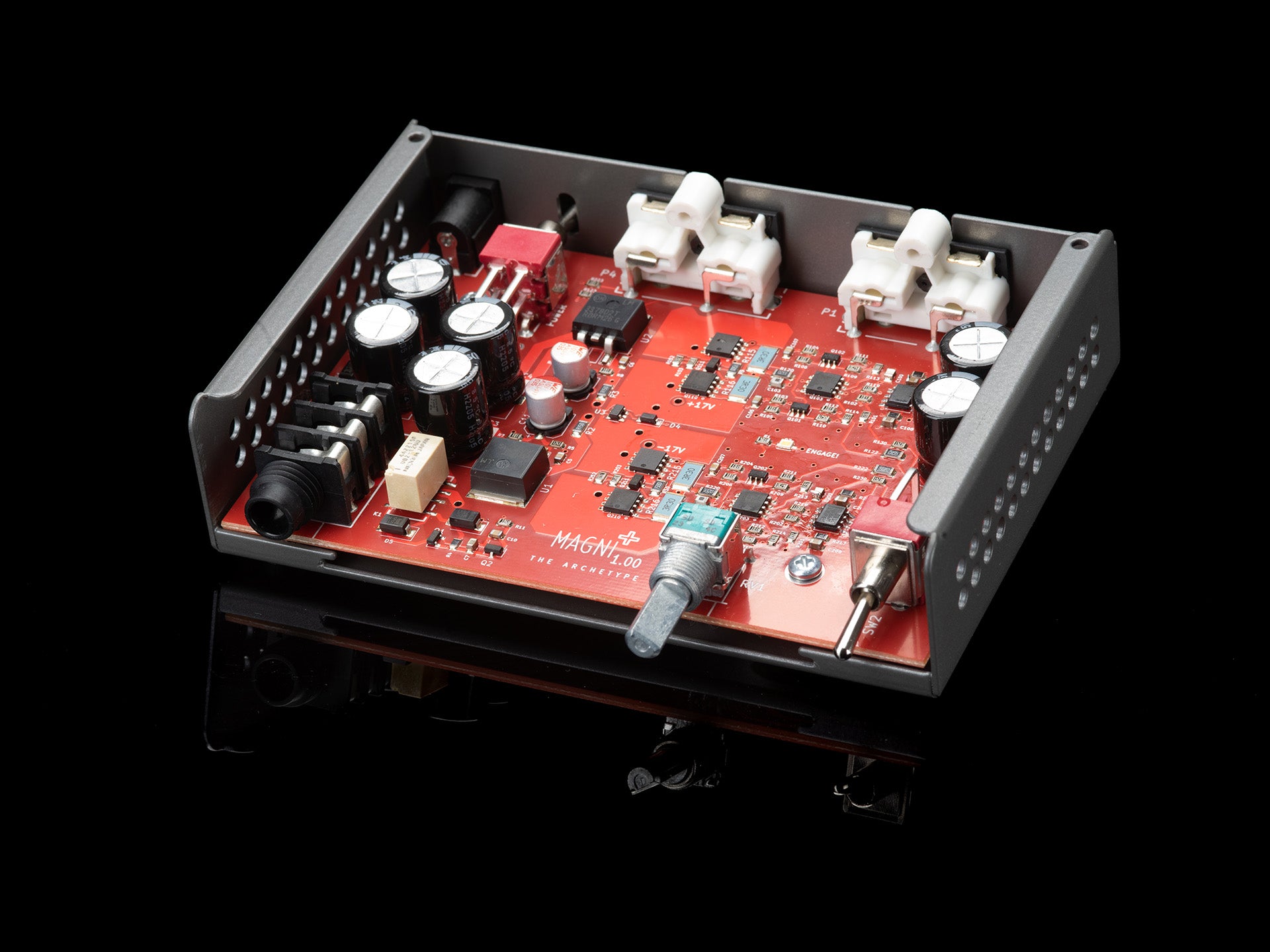

    Topology: Fully discrete, fully complementary all-bipolar, symmetrical current-feedback design with driver stage and Vbe multiplier, no capacitors in the signal path and DC servo

    Protection: Transparent overcurrent sense and protect, DC correction, failsafe DC power input and muting relay

    Power Supply: “Wall wart” style 24VA 14VAC transformer, regulated +/- 16V rails with over 8,000uF filter capacitance

    Power Consumption: 6W

    Size: 5 x 3.5 x 1.25”

    Weight: 1 lb

    APx555 Report for Magni+


    United States / Mexico / Taiwan
    USA Plug (Type B) 115V
    Australia / New Zealand / China Australian Plug (Type I) 230V
    UK / Singapore / Malaysia / Hong Kong UK Plug (Type G) 230V
    Europe / India / Korea / Russia / Thailand / Indonesia EU Plug (Type C) 230V
  • • Schiit Audio Magni+ x 1
    Magni+ Manual x 1
    • Power Cord x 1
