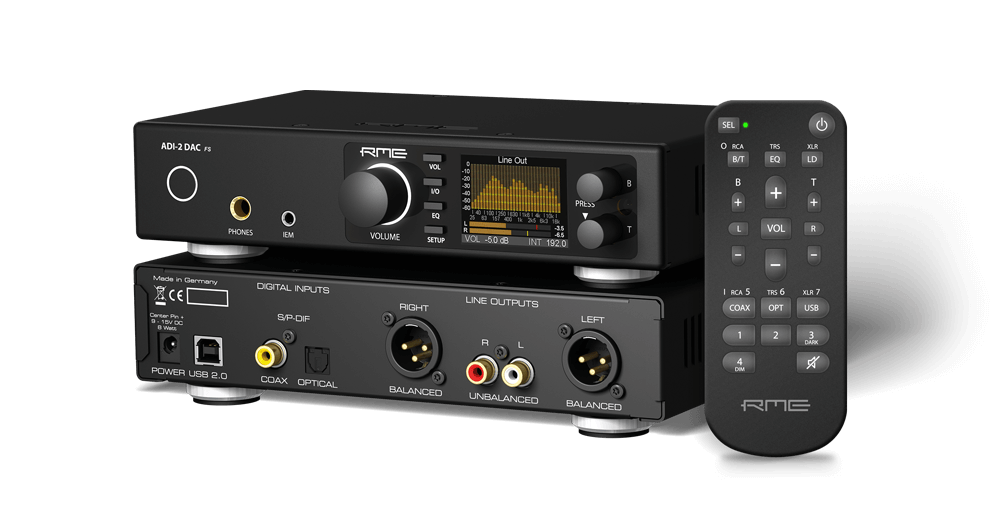

RME Audio ADI-2-DAC FS
Installment option available at check out page
$0.00 SGD
Features
Package Content
-
The ADI-2 DAC includes an improved SteadyClock, a fine-tuned to perfection analog circuitry, new MRC remote control, Extreme Power headphone output and a very special IEM output. It has all the bells and whistles that made the ADI-2 Pro famous, including its perfectly transparent sound signature and full DSP processing with Bass, Treble, Loudness, 5 Band Parametric EQ, Crossfeed and much more. With its simplified operation and stunning design it is the ideal center piece from home listening up to studio reference playback.
-
Specs
ADI-2 DAC FS
Digital Inputs
General
- Lock Range: 28 kHz – 200 kHz
- Jitter suppression: > 50 dB (2.4 kHz)
- Jitter when synced to input signal: < 1 ns
- Accepts Consumer and Professional format
SPDIF coaxial
- 1 x RCA, according to IEC 60958
- High-sensitivity input stage (< 0.3 Vpp)
- AES/EBU compatible (AES3-1992)
SPDIF optical
- 1 x optical, according to IEC 60958
- ADAT compatible
Analog Outputs
XLR
- Output level switchable +19 dBu, +13 dBu, +7 dBu, +1 dBu @ 0 dBFS
- Signal-to-noise ratio (SNR) @ +7/+13/+19 dBu: 120 dB RMS unweighted, 123 dBA
- Signal-to-noise ratio (SNR) @ +1 dBu: 117 dB RMS unweighted, 120 dBA
- Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz
- Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.9 kHz
- Frequency response @ 192 kHz, -1 dB: 0 Hz – 88 kHz
- Frequency response @ 384 kHz, -1 dB: 0 Hz – 115 kHz
- Frequency response @ 768 kHz, -3 dB: 0 Hz – 109 kHz
- THD @ 0 dBFS: < -120 dB, 0.0001 %
- THD+N @ 0 dBFS: -116 dB, 0.00016 %
- Channel separation: > 120 dB
- Output impedance: 200 Ohm
RCA
As output XLR, but:
- Output: 6.3 mm TS jack, unbalanced
- Output level 6 dB lower than XLR (-5 dBu to +13 dBu @ 0 dBFS)
- Signal-to-noise ratio (SNR) @ +13 dBu: 120 dB RMS unweighted, 123 dBA
- Signal-to-noise ratio (SNR) @ +1/+7 dBu: 116/119 dB RMS unw., 119/122 dBA
- Signal-to-noise ratio (SNR) @ -5 dBu: 112 dB RMS unweighted, 114 dBA
- Output impedance: 100 Ohm
Phones
As RCA, but:
- Output: 6.3 mm TRS jack, unbalanced, stereo
- Output impedance: 0.1 Ohm
- Signal-to-noise ratio (SNR) @ +22 dBu: 120 dB RMS unweighted, 123 dBA
- Signal-to-noise ratio (SNR) @ +7 dBu: 118 dB RMS unweighted, 121 dBA
- Output level at 0 dBFS, High Power, load 100 Ohm or up: +22 dBu (10 V)
- Output level at 0 dBFS, Low Power, load 8 Ohm or up: +7 dBu (1.73 V)
- THD @ +18 dBu, 32 ohm load, 1.2 watts: -120 dB, 0.0001 %
- THD+N @ + 18 dBu, 32 Ohm Load: -114 dB, 0.0002 %
- THD @ +14 dBu, 16 Ohm load, 0.94 Watt: -110 dB, 0.0003 %
- Max power @ 0.001% THD: 1.5 W per channel
IEM
As Phones, but:
- Output level at 0 dBFS: -3 dBu, 0.55 V
- Signal-to-noise ratio (SNR) @ -3 dBu: 118 dB RMS unweighted, 121 dBA
- Max power, 8 Ohm, 0.001% THD: 40 mW per channel
Digital
- Clocks: Internal, SPDIF In
- Jitter suppression of external clocks: > 50 dB (2.4 kHz)
- Effective clock jitter influence on DA conversion: near zero
- PLL ensures zero dropout, even at more than 100 ns jitter
- Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation
- Supported sample rates for external clocks: 28 kHz up to 200 kHz
- Internally supported sample rates: 44.1 kHz up to 768 kHz
General
- Included power supply: external switching PSU, 100 - 240 V AC, 2 A, 24 Watts
- Standby power consumption: 120 mW (10 mA)
- Idle power consumption: 7 Watts, Max. power consumption: 18 Watts
- Idle current at 12 V: 570 mA (6.8 Watts)
- Dimensions (WxHxD): 215 x 52 x 150 mm (8.5" x 2.05" x 5.9")
- Weight: 1.0 kg ( 2.2 lbs)
- Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
- Relative humidity: < 75%, non condensing
-
- MRC (Multi-Remote-Control)
- NT-RME-2 Power supply for ADI-2 DAC. Robust and light-weight switching power supply, 100 V-240 V AC, 12 V 2 A DC. Lockable DC connector.
- USB2M RME USB 2 cable, length 78” (2m)
